▊ 概要

BLOCK（BLOCK Transformatoren-Elektronik GmbH，博洛科）成立于1939年，总部位于德国下萨克森州费尔登，是全球领先的电力解决方案供应商。公司主要业务包括变压器（控制变压器、安全变压器、隔离变压器、自耦变压器、电力变压器、环形铁芯变压器、PCB变压器）、电源、滤波器等产品。BLOCK的产品广泛应用于轨道交通、可再生能源、医疗、工业自动化、机床、冲床、车辆、钢铁、建筑、机械设备、电气设备、电子等领域，致力于为客户提供高质量的电力解决方案和定制化服务。

—— ◆ ——

▊ 属性

品牌 BRAND	系别 COUNTRY	产品 PRODUCT
博洛科（BLOCK）	德国	• 控制变压器、安全变压器、隔离变压器、自耦变压器、电力变压器、环形铁芯变压器、PCB变压器等。
成立 ESTABLISHMENT	总部 HEADQUARTERS	领域 FIELD
1939	萨克森	机械工程、轨道交通、可再生能源、医疗和工业自动化等领域。

▊ 型号

高思（GAOSSI）专业供应以下系列型号产品：

☑ 系列型号

表1 BLOCK 博洛科 变压器系列

控制与(安全)隔离变压器 Control and （safety ）isolating transformers	分离变压器 (Separating Transformers)	隔离变压器 (Isolating Transformers)	自耦变压器（Autotransformers）	PCB变压器（PCB Transformers）	环形变压器（Toroidal Transformer）	薄型变压器（low profile transformers）
BUST系列	CT	TIM	AIM	VB	RKD	FL
ST系列		ETTK	VT-EN	AVB	RKD	FLD
STE系列		TTE	ESP	VC		FLE
STU系列		TTE Neo	E-JET	VCM

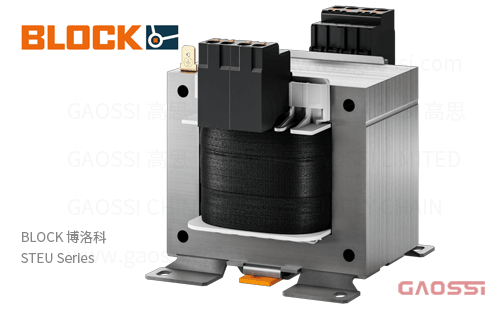

STEU		TTML	JET	VR

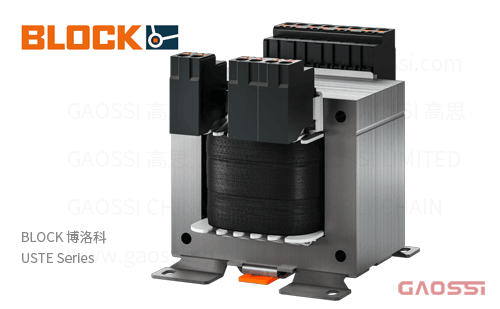

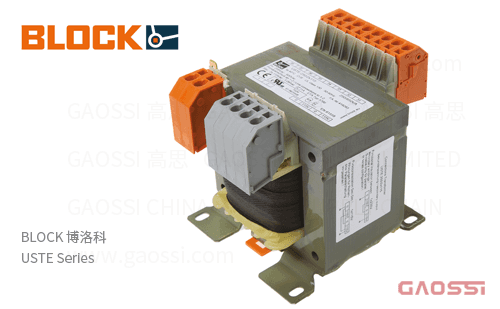

USTE系列		TTMS	AT3	PT
STSU		TTIT	DSP	EP

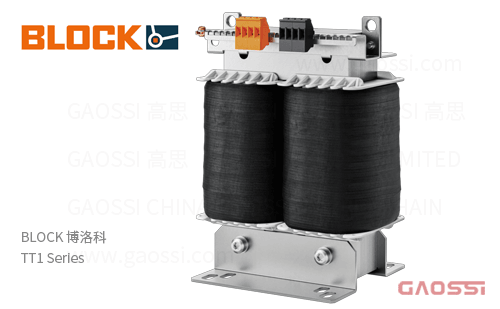

TT1系列		TT3-A	ESS

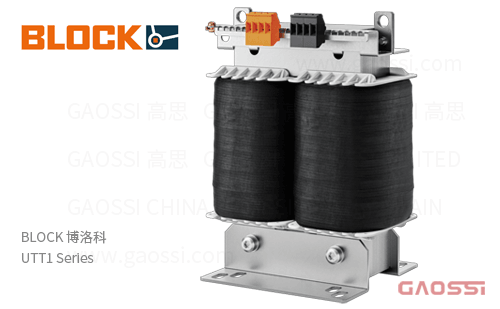

UTT1系列

☑ 型号示例

表2 BLOCK 博洛科 控制与（安全）隔离变压器系列型号一览表

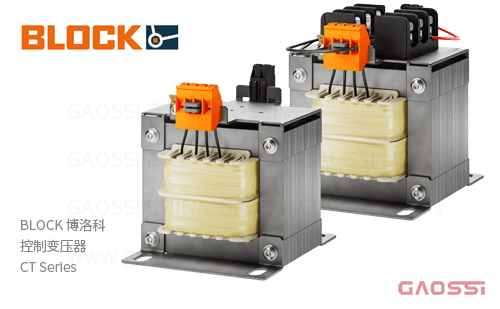

BUST系列	ST系列	STE系列	STU系列	STEU系列	USTE系列	TT1/UTT1系列	CT系列
BUST 1000/4/23	ST 20/23/12	STE 63/23/24	STU 63/24	STEU 20/23	USTE 40/2×12	TT1 1,6-23-24	CT-005-048-12-0
BUST 1600/4/23	ST 20/23/23	STE 63/4/23	STU 63/2×115	STEU 20/24	USTE 100/2×115	TT1 1,6-4-23	CT-005-048-24-0
BUST 2000/4/23	ST 20/23/24	STE 63/4/24	STU 100/24	STEU 63/23	USTE 100/2×12	TT1 1,6-4-42	CT-005-060-12-0
BUST 2500/4/23	ST 20/4/23	STE 100/23/24	STU 100/2×115	STEU 63/24	USTE 250/2×115	TT1 1-23-24	CT-005-060-24-0
BUST 3000/4/23	ST 63/11/23	STE 100/4/23	STU 130/24	STEU 63/48	USTE 250/2×12	TT1 1-4-23	CT-007-048-12-0
BUST 3000/44/23	ST 63/11/24	STE 160/23/24	STU 130/2×115	STEU 100/23	USTE 400/2×115	TT1 2,5-23-24	CT-007-048-24-0
BUST 3000/5/23	ST 63/23/12	STE 160/4/23	STU 160/24	STEU 100/24	USTE 400/2×12	TT1 2,5-4-23	CT-007-060-12-0
BUST 4000/23/23	ST 63/23/23	STE 160/4/24	STU 160/2×115	STEU 100/48	USTE 630/2×115	TT1 2,5-4-42	CT-007-060-24-0
BUST 4000/4/23	ST 63/23/24	STE 250/23/24	STU 250/24	STEU 160/23	USTE 630/2×12	TT1 2-23-24	CT-010-048-12-0
BUST 4000/44/23	ST 63/4/23	STE 250/4/23	STU 250/2×115	STEU 160/24	USTE 800/2×115	TT1 2-4-23	CT-010-048-24-0
BUST 4000/5/23	ST 63/4/24	STE 250/4/24	STU 400/24	STEU 160/48	USTE 1000/2×115	TT1 3-4-23	CT-010-060-12-0
BUST 5000/4/23	ST 63/4/42	STE 320/23/24	STU 400/2×115	STEU 250/23	USTE 1200/2×115	TT1 3-44-23	CT-010-060-24-0
BUST 6300/4/23	ST 63/44/23	STE 320/4/23	STU 500/24	STEU 250/24	USTE 1600/2×115	TT1 3-5-23	CT-015-048-12-0
BUST 6300/44/23	ST 63/69/23	STE 400/23/24	STU 500/2×115	STEU 250/48	USTE 2500/2x115	TT1 4-4-23	CT-015-048-24-0
BUST 6300/5/23	ST 100/23/12	STE 400/4/23	STU 630/24	STEU 320/23	USTE 3200/2×115	TT1 4-44-23	CT-015-060-12-0
BUST 8000/4/23	ST 100/23/23	STE 500/23/24	STU 630/2×115	STEU 320/24		TT1 4-5-23	CT-015-060-24-0
BUST 10000/4/23	ST 100/23/24	STE 500/4/23	STU 800/24	STEU 320/48		TT1 5-4-23	CT-020-048-12-0
	ST 100/4/23	STE 500/4/24	STU 800/2×115	STEU 400/23		TT1 5-44-23	CT-020-048-24-0
	ST 100/4/24	STE 630/4/23	STU 1000/2×115	STEU 400/24		TT1 5-5-23	CT-020-060-12-0
	ST 100/44/23	STE 800/4/23	STU 1600/2×115	STEU 400/48		TT1 6,3-4-23	CT-020-060-24-0
	ST 100/69/23	STE 1000/4/23	STU 2000/2×115	STEU 500/23		TT1 6,3-44-23	CT-025-048-12-0
	ST 130/23/11	STE 1600/4/23	STU 2500/2×115	STEU 500/24		TT1 6,3-5-23	CT-025-048-24-0
	ST 130/23/24	STE 2000/4/23		STEU 500/48		TT1 8-4-23	CT-025-060-12-0
	ST 130/4/23	STE 2500/4/23		STEU 630/23		TT1 8-44-23	CT-025-060-24-0
	ST 130/69/23			STEU 630/24		TT1 8-5-23	CT-030-048-12-0
	ST 160/23/23			STEU 630/48		TT1 10-4-23	CT-030-048-24-0
	ST 160/23/24			STEU 800/23		TT1 10-44-23	CT-030-060-12-0
	ST 160/4/23			STEU 800/24		TT1 10-5-23	CT-030-060-24-0
	ST 160/4/24			STEU 800/48		TT1 12,5-4-23	CT-035-048-12-0
	ST 160/69/23			STEU 1000/23		TT1 15-4-23	CT-035-048-24-0
	ST 250/11/24			STEU 1000/24		TT1 20-4-23	CT-035-060-12-0
	ST 250/23/12			STEU 1000/48		TT1 25-4-23	CT-035-060-24-0
	ST 250/23/23			STEU 1600/23		UTT1-3,2-23	CT-050-048-12-0
	ST 250/23/24			STEU 2000/23		UTT1-4-23	CT-050-060-12-0
	ST 250/23/42			STEU 2500/23		UTT1-6-23	CT-075-048-12-0
	ST 250/4/23						CT-075-060-12-0
	ST 250/4/24						CT-100-048-12-0
	ST 250/44/23						CT-100-060-12-0
	ST 250/69/23						CT-150-048-12-0
	ST 320/23/23						CT-200-048-12-0
	ST 320/23/24
	ST 320/4/23
	ST 320/4/24
	ST 320/69/23
	ST 400/11/11
	ST 400/11/23
	ST 400/23/23
	ST 400/23/24
	ST 400/4/23
	ST 400/4/24
	ST 400/69/23
	ST 500/11/23
	ST 500/23/23
	ST 500/23/24
	ST 500/23/42
	ST 500/4/23
	ST 500/4/24
	ST 500/44/23
	ST 500/69/23
	ST 630/23/23
	ST 630/23/42
	ST 630/4/23
	ST 630/69/23
	ST 800/11/11
	ST 800/23/23
	ST 800/4/23
	ST 800/4/24
	ST 800/44/23
	ST 800/69/23
	ST 1000/11/23
	ST 1000/23/23
	ST 1000/4/23
	ST 1000/44/23
	ST 1000/5/23
	ST 1000/69/23
	ST 1600/4/23
	ST 1600/69/23
	ST 2000/4/23
	ST 2000/69/23
	ST 2500/4/23
	ST 2500/69/23

说明：以上系列型号源自于产品目录或企业官网。如有发生变更，恕不另行通知，具体可参考官网、产品目录或官方通告。

▊ 规格

☑ 规格参数

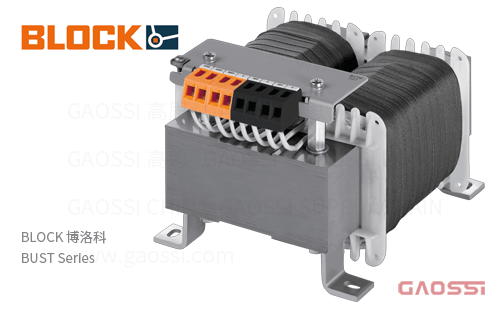

表3 BLOCK 博洛科 控制与（安全）隔离变压器 BUST系列规格参数

型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm	重量kg
BUST 1000/4/23	380/400/420	2×115	1000	150/120/213	10
BUST 1600/4/23	380/400/420	2×115	1600	173/144/240	16
BUST 2000/4/23	380/400/420	2×115	2000	197/149/267	19
BUST 2500/4/23	380/400/420	2×115	2500	197/162/267	25
BUST 3000/4/23	380/400/420	2×115	3000	197/174/267	28
BUST 3000/44/23	394/415/440/461	2×115	3000	197/174/267	28
BUST 3000/5/23	475/500/525	2×115	3000	197/174/267	28
BUST 4000/23/23	219/230/241	2×115	4000	237/168/320	37
BUST 4000/4/23	380/400/420	2×115	4000	237/168/320	37
BUST 4000/44/23	394/415/440/461	2×115	4000	237/168/320	37
BUST 4000/5/23	475/500/525	2×115	4000	237/168/320	37
BUST 5000/4/23	380/400/420	2×115	5000	237/183/320	41
BUST 6300/4/23	380/400/420	2×115	6300	277/207/350	58
BUST 6300/44/23	394/415/440/461	2×115	6300	277/207/350	58
BUST 6300/5/23	475/500/525	2×115	6300	277/207/350	58
BUST 8000/4/23	380/400/420	2×115	8000	277/241/350	72
BUST 10000/4/23	380/400/420	2×115	10000	316/228/400	86

---

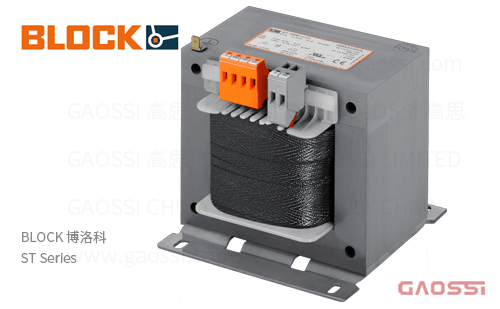

表4 BLOCK 博洛科 控制与（安全）隔离变压器 ST系列规格参数

型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm	重量kg
ST 20/23/12	219/230/241	12	20	66/80/69	0.7
ST 20/23/24	219/230/241	24	20	66/80/69	0.7
ST 20/23/23	219/230/241	230	20	66/80/69	0.7
ST 20/4/23	380/400/420	230	20	66/80/69	0.7
ST 63/11/24	109/115/121	24	63	78/89/73	1.1
ST 63/23/12	219/230/241	12	63	78/89/73	1.1
ST 63/23/24	219/230/241	24	63	78/89/73	1.1
ST 63/23/23	219/230/241	230	63	78/89/73	1.1
ST 63/4/24	380/400/420	24	63	78/89/73	1.1
ST 63/4/42	380/400/420	42	63	78/89/73	1.1
ST 63/4/23	380/400/420	230	63	78/89/73	1.1
ST 63/44/23	418/440/462	230	63	78/89/73	1.1
ST 63/69/23	655/690/725	230	63	78/89/73	1.1
ST 100/23/12	219/230/241	12	100	84/94/83	2.0
ST 100/23/24	219/230/241	24	100	84/94/83	2.0
ST 100/23/23	219/230/241	230	100	84/94/83	2.0
ST 100/4/24	380/400/420	24	100	84/94/83	2.0
ST 100/4/23	380/400/420	230	100	84/94/83	2.0
ST 100/69/23	655/690/725	230	100	84/94/83	2.0
ST 130/23/11	219/230/241	110	130	96/104/82	2.3
ST 130/23/24	219/230/241	24	130	96/104/82	2.3
ST 130/4/23	380/400/420	230	130	96/104/82	2.3
ST 130/69/23	655/690/725	230	130	96/104/82	2.3
ST 160/23/24	219/230/241	24	160	96/104/90	2.8
ST 160/23/23	219/230/241	230	160	96/104/90	2.8
ST 160/4/24	380/400/420	24	160	96/104/90	2.8
ST 160/4/23	380/400/420	230	160	96/104/90	2.8
ST 160/69/23	655/690/725	230	160	96/104/90	2.8
ST 250/11/24	109/115/121	24	250	96/104/105	3.5
ST 250/23/12	219/230/241	12	250	96/104/105	3.5
ST 250/23/24	219/230/241	24	250	96/104/105	3.5
ST 250/23/42	219/230/241	42	250	96/104/105	3.5
ST 250/23/23	219/230/241	230	250	96/104/105	3.5
ST 250/4/24	380/400/420	24	250	96/104/105	3.5
ST 250/4/23	380/400/420	230	250	96/104/105	3.5
ST 250/44/23	418/440/462	230	250	96/104/105	3.5
ST 250/69/23	655/690/725	230	250	96/104/105	3.5
ST 320/23/24	219/230/241	24	320	105/111/105	4.3
ST 320/23/23	219/230/241	230	320	105/111/105	4.3
ST 320/4/23	380/400/420	230	320	105/111/105	4.3
ST 320/69/23	655/690/725	230	320	105/111/105	4.3
ST 400/11/23	109/115/121	230	400	120/121/110	5.0
ST 400/23/24	219/230/241	24	400	120/121/110	5.0
ST 400/23/23	219/230/241	230	400	120/121/110	5.0
ST 400/4/24	380/400/420	24	400	120/121/110	5.0
ST 400/4/23	380/400/420	230	400	120/121/110	5.0
ST 400/69/23	655/690/725	230	400	120/121/110	5.0
ST 500/11/23	109/115/121	230	500	120/121/130	6.6
ST 500/23/24	219/230/241	24	500	120/121/130	6.6
ST 500/23/42	219/230/241	42	500	120/121/130	6.6
ST 500/23/23	219/230/241	230	500	120/121/130	6.6
ST 500/4/23	380/400/420	230	500	120/121/130	6.6
ST 500/44/23	418/440/462	230	500	120/121/130	6.6
ST 500/69/23	655/690/725	230	500	120/121/130	6.6
ST 630/23/42	219/230/241	42	630	150/144/112	7.7
ST 630/23/23	219/230/241	230	630	150/144/112	7.7
ST 630/4/23	380/400/420	230	630	150/144/112	7.7
ST 630/69/23	655/690/725	230	630	150/144/112	7.7
ST 800/11/11	109/115/121	115	800	150/144/128	9.8
ST 800/23/23	219/230/241	230	800	150/144/128	9.8
ST 800/4/23	380/400/420	230	800	150/144/128	9.8
ST 800/44/23	418/440/462	230	800	150/144/128	9.8
ST 800/69/23	655/690/725	230	800	150/144/128	9.8
ST 1000/11/23	109/115/121	230	1000	150/144/156	13.1
ST 1000/23/23	219/230/241	230	1000	150/144/156	13.1
ST 1000/4/23	380/400/420	230	1000	150/144/156	13.1
ST 1000/44/23	418/440/462	230	1000	150/144/156	13.1
ST 1000/5/23	475/500/525	230	1000	150/144/156	13.1
ST 1000/69/23	655/690/725	230	1000	150/144/156	13.1
ST 1600/4/23	380/400/420	230	1600	192/181/145	16.8
ST 1600/69/23	655/690/725	230	1600	192/181/145	16.8
ST 2000/4/23	380/400/420	230	2000	192/181/161	21.0
ST 2000/69/23	655/690/725	230	2000	192/181/161	21.0
ST 2500/4/23	380/400/420	230	2500	192/181/183	25.5
ST 2500/69/23	655/690/725	230	2500	192/181/183	25.5

---

表5 BLOCK 博洛科 控制与（安全）隔离变压器 STE系列规格参数

型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度 mm	重量kg
STE 63/23/24	219/230/241	24	63	84/93/95	1.2
STE 63/4/24	380/400/420	24	63	84/93/95	1.2
STE 63/4/23	380/400/420	230	63	84/93/95	1.2
STE 100/23/24	219/230/241	24	100	84/98/112	2
STE 100/4/23	380/400/420	230	100	84/98/112	2
STE 160/23/24	219/230/241	24	160	96/107/115	2.9
STE 160/4/23	380/400/420	230	160	96/107/115	2.9
STE 250/23/24	219/230/241	24	250	96/107/129	3.5
STE 250/4/24	380/400/420	24	250	96/107/129	3.5
STE 250/4/23	380/400/420	230	250	96/107/129	3.5
STE 320/23/24	219/230/241	24	320	105/114/129	4.3
STE 320/4/23	380/400/420	230	320	105/114/129	4.3
STE 400/23/24	219/230/241	24	400	120/124/123	5
STE 400/4/23	380/400/420	230	400	120/124/123	5
STE 500/23/24	219/230/241	24	500	120/124/143	6.5
STE 500/4/24	380/400/420	24	500	120/124/143	6.5
STE 500/4/23	380/400/420	230	500	120/124/143	6.5
STE 630/4/23	380/400/420	230	630	150/146/119	7.8
STE 800/4/23	380/400/420	230	800	150/146/136	9.9
STE 1000/4/23	380/400/420	230	1000	150/146/162	13.1
STE 1600/4/23	380/400/420	230	1600	192/183/145	18
STE 2000/4/23	380/400/420	230	2000	192/183/161	21.8
STE 2500/4/23	380/400/420	230	2500	192/183/183	25.5

---

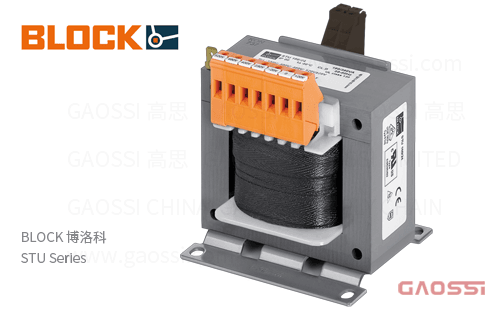

表6 BLOCK 博洛科 控制与（安全）隔离变压器 STU系列规格参数

型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm	重量kg
STU 63/24	210/230/250/380/400/420/440/460/480/500/520/540	24	63	84/94/76	1.5
STU 63/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	63	84/94/76	1.5
STU 100/24	210/230/250/380/400/420/440/460/480/500/520/540	24	100	84/94/90	2
STU 100/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	100	84/94/90	2
STU 130/24	210/230/250/380/400/420/440/460/480/500/520/540	24	130	96/104/82	2.3
STU 130/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	130	96/104/82	2.3
STU 160/24	210/230/250/380/400/420/440/460/480/500/520/540	24	160	96/104/92	2.8
STU 160/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	160	96/104/92	2.8
STU 250/24	210/230/250/380/400/420/440/460/480/500/520/540	24	250	120/122/92	4.1
STU 250/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	250	120/122/92	4.1
STU 400/24	210/230/250/380/400/420/440/460/480/500/520/540	24	400	120/126/119	5.4
STU 400/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	400	120/122/104	5.4
STU 500/24	210/230/250/380/400/420/440/460/480/500/520/540	24	500	150/125/139	7
STU 500/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	500	120/122/124	7
STU 630/24	210/230/250/380/400/420/440/460/480/500/520/540	24	630	150/148/121	7.9
STU 630/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	630	150/144/112	7.9
STU 800/24	210/230/250/380/400/420/440/460/480/500/520/540	24	800	150/148/137	10.3
STU 800/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	800	150/144/128	10.3
STU 1000/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	1000	150/144/156	13.5
STU 1600/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	1600	192/181/145	17.8
STU 2000/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	2000	192/181/183	22.4
STU 2500/2×115	210/230/250/380/400/420/440/460/480/500/520/540	2×115	2500	192/181/189	25.3

---

表7 BLOCK 博洛科 控制与（安全）隔离变压器 STEU系列规格参数

型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm	重量kg
STEU 20/24	230/400	2×12	20	66/84/93	0.67
STEU 20/23	230/400	2×115	20	66/84/93	0.67
STEU 63/24	230/400	2×12	63	84/93/96	1.3
STEU 63/23	230/400	2×115	63	84/93/96	1.3
STEU 63/48	230/400	2×24	63	84/93/96	1.3
STEU 100/24	230/400	2×12	100	84/98/112	2.1
STEU 100/23	230/400	2×115	100	84/98/112	2.1
STEU 100/48	230/400	2×24	100	84/98/112	2.1
STEU 160/24	230/400	2×12	160	96/107/115	2.9
STEU 160/23	230/400	2×115	160	96/107/115	2.9
STEU 160/48	230/400	2×24	160	96/107/115	2.9
STEU 250/24	230/400	2×12	250	96/107/129	3.6
STEU 250/23	230/400	2×115	250	96/107/129	3.6
STEU 250/48	230/400	2×24	250	96/107/129	3.6
STEU 320/24	230/400	2×12	320	120/124/111	4.3
STEU 320/23	230/400	2×115	320	120/124/111	4.3
STEU 320/48	230/400	2×24	320	120/124/111	4.3
STEU 400/24	230/400	2×12	400	120/124/124	5.3
STEU 400/23	230/400	2×115	400	120/124/124	5.3
STEU 400/48	230/400	2×24	400	120/124/124	5.3
STEU 500/24	230/400	2×12	500	120/124/143	7.7
STEU 500/23	230/400	2×115	500	120/124/143	7.7
STEU 500/48	230/400	2×24	500	120/124/143	7.7
STEU 630/24	230/400	2×12	630	150/181/116	7.9
STEU 630/23	230/400	2×115	630	150/146/119	7.9
STEU 630/48	230/400	2×24	630	150/146/119	7.9
STEU 800/24	230/400	2×12	800	150/181/132	10.3
STEU 800/23	230/400	2×115	800	150/146/136	10.3
STEU 800/48	230/400	2×24	800	150/146/136	10.3
STEU 1000/24	230/400	2×12	1000	150/184/159	13.3
STEU 1000/23	230/400	2×115	1000	150/146/162	13.3
STEU 1000/48	230/400	2×24	1000	150/146/162	13.3
STEU 1600/23	230/400	2×115	1600	192/183/161	21
STEU 2000/23	230/400	2×115	2000	192/183/183	25.5
STEU 2500/23	230/400	2×115	2500	192/183/189	27

---

表8 BLOCK 博洛科 控制与（安全）隔离变压器 USTE系列规格参数

型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm	重量kg
USTE 40/2×12	208/230/380/400/415/440/460/480/500/525/550/575/600	2×12	40	84/99/99	1.4
USTE 100/2×12	208/230/380/400/415/440/460/480/500/525/550/575/600	2×12	100	84/98/113	2.1
USTE 100/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	100	84/98/113	2.1
USTE 250/2×12	208/230/380/400/415/440/460/480/500/525/550/575/600	2×12	250	96/107/129	3.6
USTE 250/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	250	96/107/129	3.6
USTE 400/2×12	208/230/380/400/415/440/460/480/500/525/550/575/600	2×12	400	120/123/124	5.3
USTE 400/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	400	120/123/124	5.3
USTE 630/2×12	208/230/380/400/415/440/460/480/500/525/550/575/600	2×12	630	150/148/142	7.9
USTE 630/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	630	150/146/119	7.9
USTE 800/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	800	150/146/136	10.9
USTE 1000/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	1000	150/146/162	13.8
USTE 1200/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	1200	174/162/143	13.8
USTE 1600/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	1600	192/183/145	20.8
USTE 2500/2x115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	2500	192/183/189	26.3
USTE 3200/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	3200	231/248/217	39

---

表9 BLOCK 博洛科 控制与（安全）隔离变压器 TT1系列规格参数

型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm	重量kg
TT1 1-4-23	380/400/420	2×115	1000	156/219/124	9.1
TT1 1-23-24	219/230/241	24	1000	150/220/140	9.1
TT1 1,6-4-42	380/400/420	42	1600	160/256/157	13.8
TT1 1,6-4-23	380/400/420	2×115	1600	160/227/141	13.8
TT1 2-23-24	219/230/241	24	2000	174/244/140	17
TT1 2-4-23	380/400/420	2×115	2000	174/244/140	17
TT1 2,5-4-42	380/400/420	42	2500	197/306/164	21
TT1 2,5-4-23	380/400/420	2×115	2500	197/274/152	20
TT1 3-4-23	380/400/420	2×115	3000	197/275/165	24
TT1 3-44-23	420/440/460	2×115	3000	197/275/165	24
TT1 3-5-23	475/500/525	2×115	3000	197/275/165	24
TT1 4-4-23	380/400/420	2×115	4000	240/331/163	31
TT1 4-44-23	420/440/460	2×115	4000	240/331/163	31
TT1 4-5-23	475/500/525	2×115	4000	240/331/163	31
TT1 5-4-23	380/400/420	2×115	5000	240/331/194	39
TT1 5-44-23	420/440/460	2×115	5000	240/331/194	39
TT1 5-5-23	475/500/525	2×115	5000	240/331/194	39
TT1 6,3-4-23	380/400/420	2×115	6300	240/331/209	48
TT1 6,3-44-23	420/440/460	2×115	6300	240/331/209	48
TT1 6,3-5-23	475/500/525	2×115	6300	240/331/209	48
TT1 8-4-23	380/400/420	2×115	8000	280/382/214	60
TT1 8-44-23	420/440/460	2×115	8000	280/382/214	60
TT1 8-5-23	475/500/525	2×115	8000	280/382/214	60
TT1 10-4-23	380/400/420	2×115	10000	280/382/229	75
TT1 10-44-23	420/440/460	2×115	10000	280/382/229	75
TT1 10-5-23	475/500/525	2×115	10000	280/382/229	75
TT1 12,5-4-23	380/400/420	2×115	12500	320/458/250	105
TT1 15-4-23	380/400/420	2×115	15000	320/463/250	98
TT1 25-4-23	380/400/420	2×115	25000	320/487/324	153
UTT1-3,2-23	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	3200	200/275/170	24.2
UTT1-4-23	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	4000	240/331/185	36
UTT1-6-23	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	6000	280/382/204	53

---

表10 BLOCK 博洛科 分离隔离变压器 CT系列规格参数

型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm	重量kg
CT-005-048-12-0	2×240	120	50	66/92.7/80	1
CT-005-048-12-1	2×240	120	50	66/92.7/80	1
CT-005-048-12-2	2×240	120	50	66/92.7/80	1
CT-005-048-24-0	2×240	24	50	66/92.7/80	1
CT-005-048-24-1	2×240	24	50	66/92.7/80	1
CT-005-048-24-2	2×240	24	50	66/92.7/80	1
CT-005-060-12-0	600	120	50	66/92.7/80	1
CT-005-060-12-1	600	120	50	66/92.7/80	1
CT-005-060-12-2	600	120	50	66/92.7/80	1
CT-005-060-24-0	600	24	50	66/92.7/80	1
CT-005-060-24-1	600	24	50	66/92.7/80	1
CT-005-060-24-2	600	24	50	66/92.7/80	1
CT-007-048-12-0	2×240	120	75	78/102.7/79	1.1
CT-007-048-12-1	2×240	120	75	78/102.7/79	1.1
CT-007-048-12-2	2×240	120	75	78/102.7/79	1.1
CT-007-048-24-0	2×240	24	75	78/102.7/79	1.1
CT-007-048-24-1	2×240	24	75	78/102.7/79	1.1
CT-007-048-24-2	2×240	24	75	78/102.7/79	1.1
CT-007-060-12-0	600	120	75	78/102.7/79	1.1
CT-007-060-12-1	600	120	75	78/102.7/79	1.1
CT-007-060-12-2	600	120	75	78/102.7/79	1.1
CT-007-060-24-0	600	24	75	78/102.7/79	1.1
CT-007-060-24-1	600	24	75	78/102.7/79	1.1
CT-007-060-24-2	600	24	75	78/102.7/79	1.1
CT-010-048-12-0	2×240	120	100	78/102.7/82	1.5
CT-010-048-12-1	2×240	120	100	78/102.7/82	1.5
CT-010-048-12-2	2×240	120	100	78/102.7/82	1.5
CT-010-048-24-0	2×240	24	100	78/102.7/82	1.5
CT-010-048-24-1	2×240	24	100	78/102.7/82	1.5
CT-010-048-24-2	2×240	24	100	78/102.7/82	1.5
CT-010-060-12-0	600	120	100	78/102.7/82	1.5
CT-010-060-12-1	600	120	100	78/102.7/82	1.5
CT-010-060-12-2	600	120	100	78/102.7/82	1.5
CT-010-060-24-0	600	24	100	78/102.7/82	1.5
CT-010-060-24-1	600	24	100	78/102.7/82	1.5
CT-010-060-24-2	600	24	100	78/102.7/82	1.5
CT-015-048-12-0	2×240	120	150	96/117.7/100	2.2
CT-015-048-12-1	2×240	120	150	96/117.7/100	2.2
CT-015-048-12-2	2×240	120	150	96/117.7/100	2.2
CT-015-048-24-0	2×240	24	150	96/117.7/100	2.2
CT-015-048-24-1	2×240	24	150	96/117.7/100	2.2
CT-015-048-24-2	2×240	24	150	96/117.7/100	2.2
CT-015-060-12-0	600	120	150	96/117.7/100	2.2
CT-015-060-12-1	600	120	150	96/117.7/100	2.2
CT-015-060-12-2	600	120	150	96/117.7/100	2.2
CT-015-060-24-0	600	24	150	96/117.7/100	2.2
CT-015-060-24-1	600	24	150	96/117.7/100	2.2
CT-015-060-24-2	600	24	150	96/117.7/100	2.2
CT-020-048-12-0	2×240	120	200	96/117.7/108	2.8
CT-020-048-12-1	2×240	120	200	96/117.7/108	2.8
CT-020-048-12-2	2×240	120	200	96/117.7/108	2.8
CT-020-048-24-0	2×240	24	200	96/117.7/108	2.8
CT-020-048-24-1	2×240	24	200	96/117.7/108	2.8
CT-020-048-24-2	2×240	24	200	96/117.7/108	2.8
CT-020-060-12-0	600	120	200	96/117.7/108	2.8
CT-020-060-12-1	600	120	200	96/117.7/108	2.8
CT-020-060-12-2	600	120	200	96/117.7/108	2.8
CT-020-060-24-0	600	24	200	96/117.7/108	2.8
CT-020-060-24-1	600	24	200	96/117.7/108	2.8
CT-020-060-24-2	600	24	200	96/117.7/108	2.8
CT-025-048-12-0	2×240	120	250	96/117.7/122	3.5
CT-025-048-12-1	2×240	120	250	96/117.7/122	3.5
CT-025-048-12-2	2×240	120	250	96/117.7/122	3.5
CT-025-048-24-0	2×240	24	250	96/117.7/122	3.5
CT-025-048-24-1	2×240	24	250	96/117.7/122	3.5
CT-025-048-24-2	2×240	24	250	96/117.7/122	3.5
CT-025-060-12-0	600	120	250	96/117.7/122	3.5
CT-025-060-12-1	600	120	250	96/117.7/122	3.5
CT-025-060-12-2	600	120	250	96/117.7/122	3.5
CT-025-060-24-0	600	24	250	96/117.7/122	3.5
CT-025-060-24-1	600	24	250	96/117.7/122	3.5
CT-025-060-24-2	600	24	250	96/117.7/122	3.5
CT-030-048-12-0	2×240	120	300	120/137.7/104	4
CT-030-048-12-1	2×240	120	300	120/137.7/104	4
CT-030-048-12-2	2×240	120	300	120/137.7/104	4
CT-030-048-24-0	2×240	24	300	120/137.7/104	4
CT-030-048-24-1	2×240	24	300	120/137.7/104	4
CT-030-048-24-2	2×240	24	300	120/137.7/104	4
CT-030-060-12-0	600	120	300	120/137.7/104	4
CT-030-060-12-1	600	120	300	120/137.7/104	4
CT-030-060-12-2	600	120	300	120/137.7/104	4
CT-030-060-24-0	600	24	300	120/137.7/104	4
CT-030-060-24-1	600	24	300	120/137.7/104	4
CT-030-060-24-2	600	24	300	120/137.7/104	4
CT-035-048-12-0	2×240	120	350	120/137.7/122	5
CT-035-048-12-1	2×240	120	350	120/137.7/122	5
CT-035-048-12-2	2×240	120	350	120/137.7/122	5
CT-035-048-24-0	2×240	24	350	120/137.7/122	5
CT-035-048-24-1	2×240	24	350	120/137.7/122	5
CT-035-048-24-2	2×240	24	350	120/137.7/122	5
CT-035-060-12-0	600	120	350	120/137.7/122	5
CT-035-060-12-1	600	120	350	120/137.7/122	5
CT-035-060-12-2	600	120	350	120/137.7/122	5
CT-035-060-24-0	600	24	350	120/137.7/122	5
CT-035-060-24-1	600	24	350	120/137.7/122	5
CT-035-060-24-2	600	24	350	120/137.7/122	5
CT-050-048-12-0	2×240	120	500	120/137.7/145	6.8
CT-050-048-12-1	2×240	120	500	120/137.7/145	6.8
CT-050-048-12-2	2×240	120	500	120/137.7/145	6.8
CT-050-060-12-0	600	120	500	120/137.7/145	6.8
CT-050-060-12-1	600	120	500	120/137.7/145	6.8
CT-050-060-12-2	600	120	500	120/137.7/145	6.8
CT-075-048-12-0	2×240	120	750	150/162.7/140	9.8
CT-075-048-12-1	2×240	120	750	150/162.7/140	9.8
CT-075-048-12-2	2×240	120	750	150/162.7/140	9.8
CT-075-060-12-0	600	120	750	150/162.7/140	9.8
CT-075-060-12-1	600	120	750	150/162.7/140	9.8
CT-075-060-12-2	600	120	750	150/162.7/140	9.8
CT-100-048-12-0	2×240	120	1000	174/183.2/145	11.2
CT-100-048-12-1	2×240	120	1000	174/183.2/145	11.2
CT-100-048-12-2	2×240	120	1000	174/183.2/145	11.2
CT-100-060-12-0	600	120	1000	174/183.2/145	11.2
CT-100-060-12-1	600	120	1000	174/183.2/145	11.2
CT-100-060-12-2	600	120	1000	174/183.2/145	11.2
CT-150-048-12-0	2×240	120	1500	192/198.2/165	16.7
CT-150-048-12-1	2×240	120	1500	192/198.2/165	16.7
CT-150-048-12-2	2×240	120	1500	192/198.2/165	16.7
CT-150-060-12-0	600	120	1500	192/198.2/165	16.7
CT-150-060-12-1	600	120	1500	192/198.2/165	16.7
CT-150-060-12-2	600	120	1500	192/198.2/165	16.7
CT-200-048-12-0	2×240	120	2000	192/202.4/180	21
CT-200-048-12-1	2×240	120	2000	192/202.4/180	21
CT-200-048-12-2	2×240	120	2000	192/202.4/180	21
CT-200-060-12-0	600	120	2000	192/202.4/180	21
CT-200-060-12-1	600	120	2000	192/202.4/180	21
CT-200-060-12-2	600	120	2000	192/202.4/180	21
CT-250-048-12-0	2×240	120	2500	192/202.4/190	25.8
CT-250-048-12-1	2×240	120	2500	192/202.4/190	25.8
CT-250-048-12-2	2×240	120	2500	192/202.4/190	25.8
CT-250-060-12-0	600	120	2500	192/202.4/190	25.8
CT-250-060-12-1	600	120	2500	192/202.4/190	25.8
CT-250-060-12-2	600	120	2500	192/202.4/190	25.8

---

表11 BLOCK 博洛科 控制与（安全）隔离变压器 常用型号规格参数表（STE、STEU、USTE、UTT1、CT）

型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm	重量kg
STE 63/23/24	219/230/241	24	63	84/93/95	1.2
STE 63/4/24	380/400/420	24	63	84/93/95	1.2
STE 63/4/23	380/400/420	230	63	84/93/95	1.2
STE 100/23/24	219/230/241	24	100	84/98/112	2
STE 100/4/23	380/400/420	230	100	84/98/112	2
STE 160/23/24	219/230/241	24	160	96/107/115	2.9
STE 160/4/23	380/400/420	230	160	96/107/115	2.9
STE 250/23/24	219/230/241	24	250	96/107/129	3.5
STE 250/4/24	380/400/420	24	250	96/107/129	3.5
STE 250/4/23	380/400/420	230	250	96/107/129	3.5
STE 320/23/24	219/230/241	24	320	105/114/129	4.3
STE 320/4/23	380/400/420	230	320	105/114/129	4.3
STE 400/23/24	219/230/241	24	400	120/124/123	5
STE 400/4/23	380/400/420	230	400	120/124/123	5
STE 500/23/24	219/230/241	24	500	120/124/143	6.5
STE 500/4/24	380/400/420	24	500	120/124/143	6.5
STE 500/4/23	380/400/420	230	500	120/124/143	6.5
STE 630/4/23	380/400/420	230	630	150/146/119	7.8
STE 800/4/23	380/400/420	230	800	150/146/136	9.9
STE 1000/4/23	380/400/420	230	1000	150/146/162	13.1
STE 1600/4/23	380/400/420	230	1600	192/183/145	18
STE 2000/4/23	380/400/420	230	2000	192/183/161	21.8
STE 2500/4/23	380/400/420	230	2500	192/183/183	25.5
STEU 20/24	230/400	2×12	20	66/84/93	0.67
STEU 20/23	230/400	2×115	20	66/84/93	0.67
STEU 63/24	230/400	2×12	63	84/93/96	1.3
STEU 63/23	230/400	2×115	63	84/93/96	1.3
STEU 63/48	230/400	2×24	63	84/93/96	1.3
STEU 100/24	230/400	2×12	100	84/98/112	2.1
STEU 100/23	230/400	2×115	100	84/98/112	2.1
STEU 100/48	230/400	2×24	100	84/98/112	2.1
STEU 160/24	230/400	2×12	160	96/107/115	2.9
STEU 160/23	230/400	2×115	160	96/107/115	2.9
STEU 160/48	230/400	2×24	160	96/107/115	2.9
STEU 250/24	230/400	2×12	250	96/107/129	3.6
STEU 250/23	230/400	2×115	250	96/107/129	3.6
STEU 250/48	230/400	2×24	250	96/107/129	3.6
STEU 320/24	230/400	2×12	320	120/124/111	4.3
STEU 400/24	230/400	2×12	400	120/124/124	5.3
STEU 400/23	230/400	2×115	400	120/124/124	5.3
STEU 400/48	230/400	2×24	400	120/124/124	5.3
STEU 500/24	230/400	2×12	500	120/124/143	7.7
STEU 500/23	230/400	2×115	500	120/124/143	7.7
STEU 500/48	230/400	2×24	500	120/124/143	7.7
STEU 630/24	230/400	2×12	630	150/181/116	7.9
STEU 630/23	230/400	2×115	630	150/146/119	7.9
STEU 630/48	230/400	2×24	630	150/146/119	7.9
STEU 800/24	230/400	2×12	800	150/181/132	10.3
STEU 1000/24	230/400	2×12	1000	150/184/159	13.3
STEU 1000/23	230/400	2×115	1000	150/146/162	13.3
STEU 1600/23	230/400	2×115	1600	192/183/161	21
STEU 2000/23	230/400	2×115	2000	192/183/183	25.5
STEU 2500/23	230/400	2×115	2500	192/183/189	27
USTE 40/2×12	208/230/380/400/415/440/460/480/500/525/550/575/600	2×12	40	84/99/99	1.4
USTE 100/2×12	208/230/380/400/415/440/460/480/500/525/550/575/600	2×12	100	84/98/113	2.1
USTE 100/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	100	84/98/113	2.1
USTE 250/2×12	208/230/380/400/415/440/460/480/500/525/550/575/600	2×12	250	96/107/129	3.6
USTE 250/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	250	96/107/129	3.6
USTE 400/2×12	208/230/380/400/415/440/460/480/500/525/550/575/600	2×12	400	120/123/124	5.3
USTE 630/2×12	208/230/380/400/415/440/460/480/500/525/550/575/600	2×12	630	150/148/142	7.9
USTE 630/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	630	150/146/119	7.9
USTE 800/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	800	150/146/136	10.9
USTE 1000/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	1000	150/146/162	13.8
USTE 1200/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	1200	174/162/143	13.8
USTE 3200/2×115	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	3200	231/248/217	39
UTT1-4-23	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	4000	240/331/185	36
UTT1-6-23	208/230/380/400/415/440/460/480/500/525/550/575/600	2×115	6000	280/382/204	53
CT-010-060-24-0	600	24	100	78/102.7/82	1.5
CT-025-060-24-0	600	24	250	96/117.7/122	3.5
CT-030-060-24-0	600	24	300	120/137.7/104	4
CT-035-048-12-0	2×240	120	350	120/137.7/122	5

---

表12 BLOCK 博洛科 PCB变压器（VB、AVB、VCM、VC、PT）

产品系列	型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm
VB	VB 0,35/1/6	230	6	0,35	22,7/15/22
VB	VB 0,35/1/9	230	9	0,35	22,7/15/22
VB	VB 0,35/1/12	230	12	0,35	22,7/15/22
VB	VB 0,35/1/18	230	18	0,35	22,7/15/22
VB	VB 0,35/2/6	230	2×6	0,35	22,7/15/22
VB	VB 0,35/2/9	230	2×9	0,35	22,7/15/22
VB	VB 0,35/2/12	230	2×12	0,35	22,7/15/22
VB	VB 0,35/2/15*	230	2×15	0,35	22,7/15/22
VB	VB 0,5/1/6	230	6	0,5	22,7/15/22
VB	VB 0,5/1/9	230	9	0,5	22,7/19/22
VB	VB 0,5/1/12	230	12	0,5	22,7/19/22
VB	VB 0,5/1/15	230	15	0,5	22,7/19/22
VB	VB 0,5/1/18	230	18	0,5	22,7/19/22
VB	VB 0,5/2/6	230	2×6	0,5	22,7/19/22
VB	VB 0,5/2/9	230	2×9	0,5	22,7/19/22
VB	VB 0,5/2/12	230	2×12	0,5	22,7/19/22
VB	VB 0,5/2/15*	230	2×15	0,5	22,7/19/22
VB	VB 1,0/1/6	230	6	1	27,3/21,8/32,3
VB	VB 1,0/1/9	230	9	1	27,3/21,8/32,3
VB	VB 1,0/1/12	230	12	1	27,3/21,8/32,3
VB	VB 1,0/1/15	230	15	1	27,3/21,8/32,3
VB	VB 1,0/1/24	230	24	1	27,3/21,8/32,3
VB	VB 1,0/2/6	230	2×6	1	27,3/21,8/32,3
VB	VB 1,0/2/9	230	2×9	1	27,3/21,8/32,3
VB	VB 1,0/2/12	230	2×12	1	27,3/21,8/32,3
VB	VB 1,0/2/15	230	2×15	1	27,3/21,8/32,3
VB	VB 1,5/1/6	230	6	1,5	27,3/23,8/32,3
VB	VB 1,5/1/9	230	9	1,5	27,3/23,8/32,3
VB	VB 1,5/1/12	230	12	1,5	27,3/23,8/32,3
VB	VB 1,5/1/15	230	15	1,5	27,3/23,8/32,3
VB	VB 1,5/1/18	230	18	1,5	27,3/23,8/32,3
VB	VB 1,5/1/24	230	24	1,5	27,3/23,8/32,3
VB	VB 1,5/2/6	230	2×6	1,5	27,3/23,8/32,3
VB	VB 1,5/2/9	230	2×9	1,5	27,3/23,8/32,3
VB	VB 1,5/2/12	230	2×12	1,5	27,3/23,8/32,3
VB	VB 1,5/2/15	230	2×15	1,5	27,3/23,8/32,3
VB	VB 2,0/1/6	230	6	2	27,3/26,8/32,3
VB	VB 2,0/1/9	230	9	2	27,3/26,8/32,3
VB	VB 2,0/1/12	230	12	2	27,3/26,8/32,3
VB	VB 2,0/1/15	230	15	2	27,3/26,8/32,3
VB	VB 2,0/1/18	230	18	2	27,3/26,8/32,3
VB	VB 2,0/1/24	230	24	2	27,3/26,8/32,3
VB	VB 2,0/2/12	230	2×12	2	27,3/26,8/32,3
VB	VB 2,3/1/6	230	6	2,3	27,3/29/32,3
VB	VB 2,3/1/9	230	9	2,3	27,3/29/32,3
VB	VB 2,3/1/12	230	12	2,3	27,3/29/32,3
VB	VB 2,3/1/15	230	15	2,3	27,3/29/32,3
VB	VB 2,3/1/18	230	18	2,3	27,3/29/32,3
VB	VB 2,3/1/24	230	24	2,3	27,3/29/32,3
VB	VB 2,3/2/6	230	2×6	2,3	27,3/29/32,3
VB	VB 2,3/2/9	230	2×9	2,3	27,3/29/32,3
VB	VB 2,3/2/12	230	2×12	2,3	27,3/29/32,3
VB	VB 2,3/2/15*	230	2×15	2,3	27,3/29/32,3
VB	VB 2,8/1/6	230	6	2,8	27,3/34/32,3
VB	VB 2,8/1/9	230	9	2,8	27,3/34/32,3
VB	VB 2,8/1/12	230	12	2,8	27,3/34/32,3
VB	VB 2,8/1/15	230	15	2,8	27,3/34/32,3
VB	VB 2,8/1/18	230	18	2,8	27,3/34/32,3
VB	VB 2,8/1/24	230	24	2,8	27,3/34/32,3
VB	VB 2,8/2/9	230	2×9	2,8	27,3/34/32,3
VB	VB 2,8/2/12	230	2×12	2,8	27,3/34/32,3
VB	VB 2,8/2/15*	230	2×15	2,8	27,3/34/32,3
VB	VB 2,8/2/18*	230	2×18	2,8	27,3/34/32,3
VB	VB 3,2/1/6	230	6	3,2	35/30,8/41
VB	VB 3,2/1/9	230	9	3,2	35/30,8/41
VB	VB 3,2/1/12	230	12	3,2	35/30,8/41
VB	VB 3,2/1/15	230	15	3,2	35/30,8/41
VB	VB 3,2/1/18	230	18	3,2	35/30,8/41
VB	VB 3,2/1/24	230	24	3,2	35/30,8/41
VB	VB 3,2/2/6	230	2×6	3,2	35/30,8/41
VB	VB 3,2/2/9	230	2×9	3,2	35/30,8/41
VB	VB 3,2/2/12	230	2×12	3,2	35/30,8/41
VB	VB 3,2/2/15*	230	2×15	3,2	35/30,8/41
VB	VB 3,2/2/18*	230	2×18	3,2	35/30,8/41
产品系列	型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm
AVB	AVB 0,35/2/6	2×115	2×6	0,35	22,7/15/22
AVB	AVB 1,0/2/9	2×115	2×12	1	27,3/21,8/32,3
AVB	AVB 1,0/2/12	2×115	2×12	1	27,3/21,8/32,3
AVB	AVB 1,5/2/6	2×115	2×6	1,5	27,3/23,8/32,3
AVB	AVB 1,5/2/8	2×115	2×8	1,5	27,3/23,8/32,3
AVB	AVB 1,5/2/9	2×115	2×9	1,5	27,3/23,8/32,3
AVB	AVB 1,5/2/12	2×115	2×12	1,5	27,3/23,8/32,3
AVB	AVB 1,5/2/15	2×115	2×15	1,5	27,3/23,8/32,3
AVB	AVB 1,5/2/18*	2×115	2×8	1,5	27,3/23,8/32,3
AVB	AVB 2,3/2/6	2×115	2×6	2,3	27,3/29/32,3
AVB	AVB 2,3/2/9	2×115	2×9	2,3	27,3/29/32,3
AVB	AVB 2,3/2/12	2×115	2×12	2,3	27,3/29/32,3
AVB	AVB 2,3/2/15	2×115	2×15	2,3	27,3/29/32,3
AVB	AVB 2,3/2/24*	2×115	2×24	2,3	27,3/29/32,3
AVB	AVB 3,2/2/6	2×115	2×6	3,2	35/30,8/41
AVB	AVB 3,2/2/9	2×115	2×9	3,2	35/30,8/41
AVB	AVB 3,2/2/12	2×115	2×12	3,2	35/30,8/41
产品系列	型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm
VCM	VCM 16/1/12	230	12	16	75,2/39/47,1
VCM	VCM 16/1/24	230	24	16	75,2/39/47,1
VCM	VCM 25/1/12	230	12	25	55/49,2/81,2
VCM	VCM 25/1/24	230	24	25	55/49,2/81,2
VCM	VCM 25/2/9	230	2×9	25	81,2/49,2/55
VCM	VCM 25/2/12	230	2×12	25	55/49,2/81,2
VCM	VCM 36/1/15	230	15	36	60/48,5/87,2
VCM	VCM 36/1/18	230	18	36	60/48,5/87,2
VCM	VCM 36/1/24	230	24	36	60/48,5/87,2
VCM	VCM 36/2/9	230	2×9	36	60/53,30/87,2
VCM	VCM 36/2/12	230	2×12	36	60/48,5/87,2
VCM	VCM 50/1/12	230	12	50	61/58,5/94
VCM	VCM 50/1/18	230	18	50	61/58,5/94
VCM	VCM 50/1/24	230	24	50	61/58,5/94
VCM	VCM 50/2/12	230	2×12	50	94/58,5/61
产品系列	型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm
VC	VC 3,2/1/9	230	9	3,2	41/28,1/35
VC	VC 3,2/1/15	230	15	3,2	41/28,1/35
VC	VC 3,2/2/12	230	2×12	3,2	41/28,1/35
VC	VC 5,0/1/6	230	6	5	37/33/44
VC	VC 5,0/1/9	230	9	5	37/33/44
VC	VC 5,0/1/12	230	12	5	37/33/44
VC	VC 5,0/1/15	230	15	5	37/33/44
VC	VC 5,0/1/18	230	18	5	37/33/44
VC	VC 5,0/1/24	230	24	5	37/33/44
VC	VC 5,0/2/6	230	2×6	5	44/33/37
VC	VC 5,0/2/9	230	2×9	5	37/33/44
VC	VC 5,0/2/12	230	2×12	5	37/33/44
VC	VC 5,0/2/15	230	2×15	5	37/33/44
VC	VC 5,0/2/18	230	2×18	5	44/33/37
VC	VC 5,0/2/24*	230	2×24	5	44/33/37
VC	VC 10/1/6	230	6	10	43/34,6/51
VC	VC 10/1/9	230	9	10	43/34,6/51
VC	VC 10/1/12	230	12	10	43/34,6/51
VC	VC 10/1/15	230	15	10	43/34,6/51
VC	VC 10/1/18	230	18	10	43/34,6/51
VC	VC 10/1/24	230	24	10	43/34,6/51
VC	VC 10/2/6	230	2×6	10	51/34,6/43
VC	VC 10/2/9	230	2×9	10	43/34,6/51
VC	VC 10/2/12	230	2×12	10	43/34,6/51
VC	VC 10/2/15	230	2×15	10	43/34,6/51
VC	VC 16/1/12	230	12	16	48/39/57
VC	VC 16/1/15	230	15	16	48/39/57
VC	VC 16/1/18	230	18	16	48/39/57
VC	VC 16/1/24	230	24	16	48/39/57
VC	VC 16/2/9	230	2×9	16	48/44/57
VC	VC 16/2/12	230	2×12	16	48/44/57
产品系列	型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm
PT	PT 4,5/1/8	230	8	4,5	37/33/44
PT	PT 4,5/1/9	230	9	4,5	37/33/44
PT	PT 4,5/1/12	230	12	4,5	37/33/44
PT	PT 4,5/1/15	230	15	4,5	37/33/44
PT	PT 4,5/1/18	230	18	4,5	44/33/37
PT	PT 4,5/2/9	230	2×9	4,5	37/33/44
PT	PT 4,5/2/12	230	2×12	4,5	37/33/44
PT	PT 4,5/2/15	230	2×15	4,5	44/33/37
PT	PT 7,5/1/8	230	8	7,5	43/36/51
PT	PT 7,5/1/12	230	12	7,5	43/36/51
PT	PT 7,5/1/15	230	15	7,5	43/36/51
PT	PT 7,5/2/6	230	2×6	7,5	51/36/43
PT	PT 7,5/2/8	230	2×8	7,5	43/36/51
PT	PT 7,5/2/9	230	2×9	7,5	43/36/51
PT	PT 7,5/2/12	230	2×12	7,5	43/36/51
PT	PT 7,5/2/15	230	2×15	7,5	43/36/51
PT	PT 13/1/9	230	9	13	47/40/56
PT	PT 13/1/15	230	15	13	47/40/56
PT	PT 13/2/12	230	2×12	13	47/40/56
PT	PT 13/2/15	230	2×15	13	47/40/56
PT	PT 13/2/18	230	2×18	13	56/40/47
PT	PT 22/1/8	230	8	22	54/46/64
PT	PT 22/1/24	230	24	22	54/46/64
PT	PT 22/2/9	230	2×9	22	54/46/64
PT	PT 22/2/18	230	2×18	22	54/46/64

---

表13 BLOCK 博洛科 薄形变压器（FL）

产品系列	型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	宽度/高度/深度mm
FL	FL 2/6	2×115	2×6	2	44/17,6/53
FL	FL 2/12	2×115	2×12	2	44/17,6/53
FL	FL 4/6	2×115	2×6	4	44/20/53
FL	FL 4/8	2×115	2×8	4	44/20/53
FL	FL 4/9	2×115	2×9	4	44/20/53
FL	FL 4/12	2×115	2×12	4	44/20/53
FL	FL 4/15	2×115	2×15	4	44/20/53
FL	FL 4/18	2×115	2×18	4	44/20/53
FL	FL 4/24*	2×115	2×24	4	44/20/53
FL	FL 6/6	2×115	2×6	6	44/22,8/53
FL	FL 6/8	2×115	2×8	6	44/22,8/53
FL	FL 6/9	2×115	2×9	6	44/22,8/53
FL	FL 6/12	2×115	2×12	6	44/22,8/53
FL	FL 6/15	2×115	2×15	6	44/22,8/53
FL	FL 6/18	2×115	2×18	6	44/22,8/53
FL	FL 8/6	2×115	2×6	8	44/29/53
FL	FL 8/9	2×115	2×9	8	44/29/53
FL	FL 8/12	2×115	2×12	8	44/29/53
FL	FL 8/15	2×115	2×15	8	44/29/53
FL	FL 8/18	2×115	2×18	8	44/29/53
FL	FL 10/6	2×115	2×6	10	57/23/68
FL	FL 10/8	2×115	2×8	10	57/23/68
FL	FL 10/9	2×115	2×9	10	57/23/68
FL	FL 10/12	2×115	2×12	10	57/23/68
FL	FL 10/15	2×115	2×15	10	57/23/68
FL	FL 10/18	2×115	2×18	10	57/23/68
FL	FL 14/6	2×115	2×6	14	57/24,4/68
FL	FL 14/9	2×115	2×9	14	57/24,4/68
FL	FL 14/12	2×115	2×12	14	57/24,4/68
FL	FL 14/15	2×115	2×15	14	57/24,4/68
FL	FL 14/18	2×115	2×18	14	57/24,4/68
FL	FL 18/6	2×115	2×6	18	57/27,8/68
FL	FL 18/8	2×115	2×8	18	57/27,8/68
FL	FL 18/9	2×115	2×9	18	57/27,8/68
FL	FL 18/12	2×115	2×12	18	57/27,8/68
FL	FL 18/15	2×115	2×15	18	57/27,8/68
FL	FL 18/18	2×115	2×18	18	57/27,8/68
FL	FL 24/6	2×115	2×6	24	57/31,4/68
FL	FL 24/9	2×115	2×9	24	57/31,4/68
FL	FL 24/12	2×115	2×12	24	57/31,4/68
FL	FL 24/15	2×115	2×15	24	57/31,4/68
FL	FL 24/18	2×115	2×18	24	57/31,4/68
FL	FL 24/24*	2×115	2×24	24	57/31,4/68
FL	FL 30/6	2×115	2×6	30	57/35,8/68
FL	FL 30/9	2×115	2×9	30	57/35,8/68
FL	FL 30/12	2×115	2×12	30	57/35,8/68
FL	FL 30/15	2×115	2×15	30	57/35,8/68
FL	FL 30/18	2×115	2×18	30	57/35,8/68
FL	FL 30/24**	2×115	2×24	30	57/35,8/68
FL	FL 42/9	2×115	2×9	42	70/39/83,5
FL	FL 42/12	2×115	2×12	42	70/39/83,5
FL	FL 42/15	2×115	2×15	42	70/39/83,5
FL	FL 42/18	2×115	2×18	42	70/39/83,5
FL	FL 52/9	2×115	2×9	52	70/49/86,5
FL	FL 52/12	2×115	2×12	52	70/49/86,5
FL	FL 52/15	2×115	2×15	52	70/49/86,5
FL	FL 52/18	2×115	2×18	52	70/49/86,5

---

表14 BLOCK 博洛科 自耦变压器（AIM）

产品系列	型号/订货号	输入电压 Vac	输出电压 Vac	输出电流 A	宽度/高度/深度mm
AIM	AIM 1,6/0,8	115/220/230/240	115/220/230/240	1,6	77/76/166
AIM	AIM 3,2/1,6	115/220/230/240	115/220/230/240	3,2	117/97/223
AIM	AIM 5,0/2,5	115/220/230/240	115/220/230/240	5	117/117/223
AIM	AIM 10/5	115/220/230/240	115/220/230/240	10	200/166/283
AIM	AIM 16/8	115/220/230/240	115/220/230/240	16	200/165/283

---

表15 BLOCK 博洛科 环形变压器（RKD）

产品系列	型号/订货号	输入电压 Vac	输出电压 Vac	功率 VA	直径 mm
RKD	RKD 15/2×6	2 x 115	2 x 6	15	58
RKD	RKD 15/2×9	2 x 115	2 x 9	15	58
RKD	RKD 15/2×12	2 x 115	2 x 12	15	58
RKD	RKD 15/2×15	2 x 115	2 x 15	15	58
RKD	RKD 15/2×18	2 x 115	2 x 18	15	58
RKD	RKD 20/2×12	2 x 115	2 x 12	20	60
RKD	RKD 20/2×15	2 x 115	2 x 15	20	60
RKD	RKD 20/2×18	2 x 115	2 x 18	20	60
RKD	RKD 20/2×24*	2 x 115	2 x 24	20	60
RKD	RKD 30/2×6	2 x 115	2 x 6	30	68
RKD	RKD 30/2×9	2 x 115	2 x 9	30	68
RKD	RKD 30/2×12	2 x 115	2 x 12	30	68
RKD	RKD 30/2×15	2 x 115	2 x 15	30	68
RKD	RKD 30/2×18	2 x 115	2 x 18	30	68
RKD	RKD 30/2×24*	2 x 115	2 x 24	30	68
RKD	RKD 40/2×6	2 x 115	2 x 6	40	74
RKD	RKD 40/2×9	2 x 115	2 x 9	40	74
RKD	RKD 40/2×12	2 x 115	2 x 12	40	74
RKD	RKD 40/2×15	2 x 115	2 x 15	40	74
RKD	RKD 40/2×18	2 x 115	2 x 18	40	74
RKD	RKD 40/2×24*	2 x 115	2 x 24	40	74
RKD	RKD 50/2×12	2 x 115	2 x 12	50	77
RKD	RKD 50/2×15	2 x 115	2 x 15	50	77
RKD	RKD 50/2×18	2 x 115	2 x 18	50	77
RKD	RKD 50/2×24**	2 x 115	2 x 24	50	77
RKD	RKD 60/2×6	2 x 115	2 x 6	60	80
RKD	RKD 60/2×9	2 x 115	2 x 9	60	80
RKD	RKD 60/2×12	2 x 115	2 x 12	60	80
RKD	RKD 60/2×15	2 x 115	2 x 15	60	80
RKD	RKD 60/2×18	2 x 115	2 x 18	60	80
RKD	RKD 60/2×24**	2 x 115	2 x 24	60	80
RKD	RKD 60/2×30**	2 x 115	2 x 30	60	80
RKD	RKD 80/2×12	2 x 115	2 x 12	80	88
RKD	RKD 80/2×15	2 x 115	2 x 15	80	88
RKD	RKD 80/2×18	2 x 115	2 x 18	80	88
RKD	RKD 80/2×24**	2 x 115	2 x 24	80	88
RKD	RKD 100/2×9	2 x 115	2 x 9	100	92
RKD	RKD 100/2×12	2 x 115	2 x 12	100	92
RKD	RKD 100/2×15	2 x 115	2 x 15	100	92
RKD	RKD 100/2×18	2 x 115	2 x 18	100	92
RKD	RKD 100/2×24**	2 x 115	2 x 24	100	92
RKD	RKD 100/2×30**	2 x 115	2 x 30	100	92
RKD	RKD 120/2×9	2 x 115	2 x 9	120	94
RKD	RKD 120/2×12	2 x 115	2 x 12	120	94
RKD	RKD 120/2×15	2 x 115	2 x 15	120	94
RKD	RKD 120/2×18	2 x 115	2 x 18	120	94
RKD	RKD 120/2×24**	2 x 115	2 x 24	120	94
RKD	RKD 120/2×30**	2 x 115	2 x 30	120	94
RKD	RKD 160/2×12	2 x 115	2 x 12	160	105
RKD	RKD 160/2×15	2 x 115	2 x 15	160	105
RKD	RKD 160/2×18	2 x 115	2 x 18	160	105
RKD	RKD 160/2×24**	2 x 115	2 x 24	160	105
RKD	RKD 160/2×30**	2 x 115	2 x 30	160	105
RKD	RKD 160/2×35	2 x 115	2 x 35	160	105
RKD	RKD 200/2×12	2 x 115	2 x 12	200	113
RKD	RKD 200/2×15	2 x 115	2 x 15	200	113
RKD	RKD 200/2×18	2 x 115	2 x 18	200	113
RKD	RKD 200/2×24**	2 x 115	2 x 24	200	113
RKD	RKD 225/2×12	2 x 115	2 x 12	225	115
RKD	RKD 225/2×15	2 x 115	2 x 15	225	115
RKD	RKD 225/2×18	2 x 115	2 x 18	225	115
RKD	RKD 225/2×24**	2 x 115	2 x 24	225	115
RKD	RKD 225/2×30**	2 x 115	2 x 30	225	115
RKD	RKD 250/2×12	2 x 115	2 x 12	250	114
RKD	RKD 250/2×18	2 x 115	2 x 18	250	114
RKD	RKD 250/2×24**	2 x 115	2 x 24	250	114
RKD	RKD 250/2×30**	2 x 115	2 x 30	250	114
RKD	RKD 300/2×12	2 x 115	2 x 12	300	122
RKD	RKD 300/2×18	2 x 115	2 x 18	300	122
RKD	RKD 300/2×24**	2 x 115	2 x 24	300	126
RKD	RKD 330/2×18	2 x 115	2 x 18	330	124
RKD	RKD 400/2×18	2 x 115	2 x 18	400	128
RKD	RKD 400/2×24**	2 x 115	2 x 24	400	128
RKD	RKD 400/2×30**	2 x 115	2 x 30	400	128
RKD	RKD 500/2×24**	2 x 115	2 x 24	500	140
RKD	RKD 500/2×30**	2 x 115	2 x 30	500	140
RKD	RKD 500/2×35**	2 x 115	2 x 35	500	140
RKD	RKD 625/2×30**	2 x 115	2 x 30	625	152
RKD	RKD 625/2×115**	2 x 115	2 x 115	625	152
RKD	RKD 800/2×40**	2 x 115	2 x 40	800	170
RKD	RKD 800/2×115**	2 x 115	2 x 115	800	170
RKD	RKD 1000/2×50**	2 x 115	2 x 50	1	168
RKD	RKD 1000/2×115**	2 x 115	2 x 115	1	168
RKD	RKD 1200/2×115**	2 x 115	2 x 115	1.2	167
RKD	RKD 1600/2×115**	2 x 115	2 x 115	1.6	202
RKD	RKD 2000/2×115**	2 x 115	2 x 115	2	203
RKD	RKD 3000/2×115**	2 x 115	2 x 115	3	216

---

说明：以上规格参数源自于产品目录或企业官网。如有发生变更，恕不另行通知，具体可参考官网、产品目录或官方通告。

▊ 特点

• 略

说明：各产品特点因型号而不同，具体可参考产品目录或企业官网。

▊ 应用

• 应用于轨道交通、可再生能源、医疗、工业自动化、机床、冲床、车辆、钢铁、建筑、机械设备、电气设备、电子等领域。

购买说明
• 了解更多上述系列型号产品的规格、特点、应用等详情，可咨询客服，或参考官方网站/产品目录。
• 以上展示的产品图片仅供说明用，具体型号可能有所差异。
• 上述系列型号产品的外观、包装、产地、附件说明等可能会因升级迭代等原因而有变更，请以实际报价或产品目录等为准。
• 关于上述系列型号的产品【价格、货期、付款、物流】等信息，请参考具体邮件或报价等。
权利声明
• 以上文章部分或全部图片、文字等信息转自于互联网、声明CC0协议第三方网站、官网或产品目录等。如有侵犯权利或不希望本网站使用，请联系我们，本网站将在第一时间移除。详情参见【著作权声明】。
• Disclaimer: The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
• この Web サイトに掲載されている製品の名前、商標、ブランド、およびロゴを特徴とする製品の描写、説明、または販売は、識別のみを目的としており、権利所有者との提携または承認を示すことを意図したものではありません。 このサイトで使用されているすべての製品名、商標、ブランド、およびロゴは、それぞれの所有者の財産です。

高思承诺
• 高思销售的商品提供正规增值税发票、商务文件、专业的售后服务。
正品行货
• 高思向您保证所售商品均为正品行货。
高效配送
• 高思销售的商品默认以顺丰或京东快递/物流发货，安全快速。（部分商品除外，详情参见具体报价或相关规定）

■ 更多变压器/电抗器/UPS方面的产品信息，请参考=》LEGRAND 罗格朗、TOYOZUMI 丰澄、BLCOK 博洛科、GUANGHUA  光华、JST 金盘、MUSASHI 武藏、TAMURA 田村等。

---
