LEGRAND罗格朗变压器标识释义说明
一、概述
本说明针对罗格朗全系列变压器产品官方目录专用分类标识（Identification of Markings）进行标准化释义。该系列标识为罗格朗官方用于区分变压器产品品类、绝缘等级、应用场景及安全防护等级的专属视觉标记，广泛应用于官方产品目录、技术手册及选型资料。
重要合规声明：本文所涉标识仅为产品商业分类标记，非 IEC 60617 电气制图标准符号，不得用于电气原理图绘制、工程图纸设计及官方报审资料，仅适用于产品选型识别与品类区分。

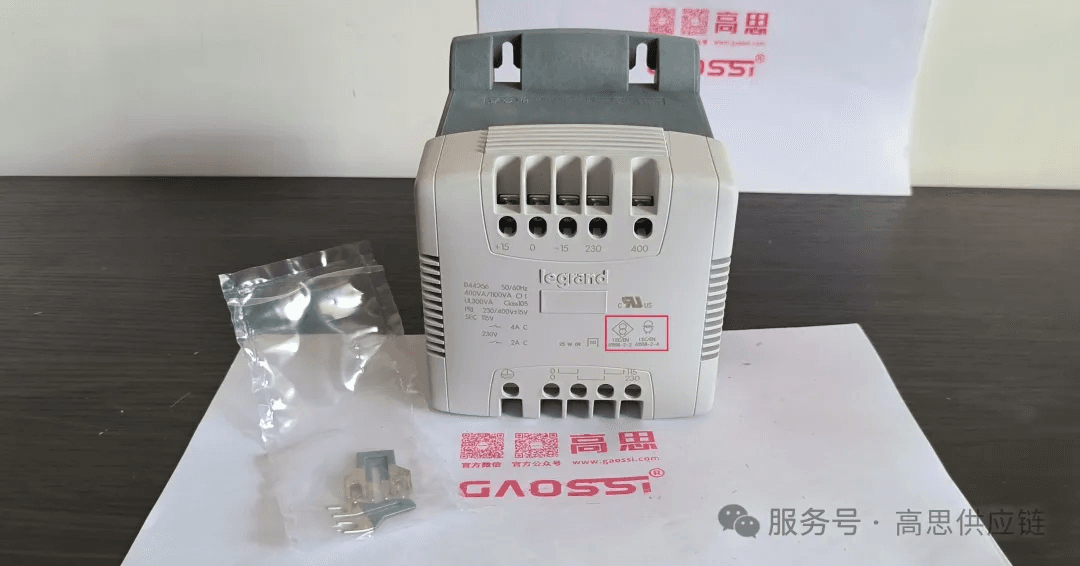

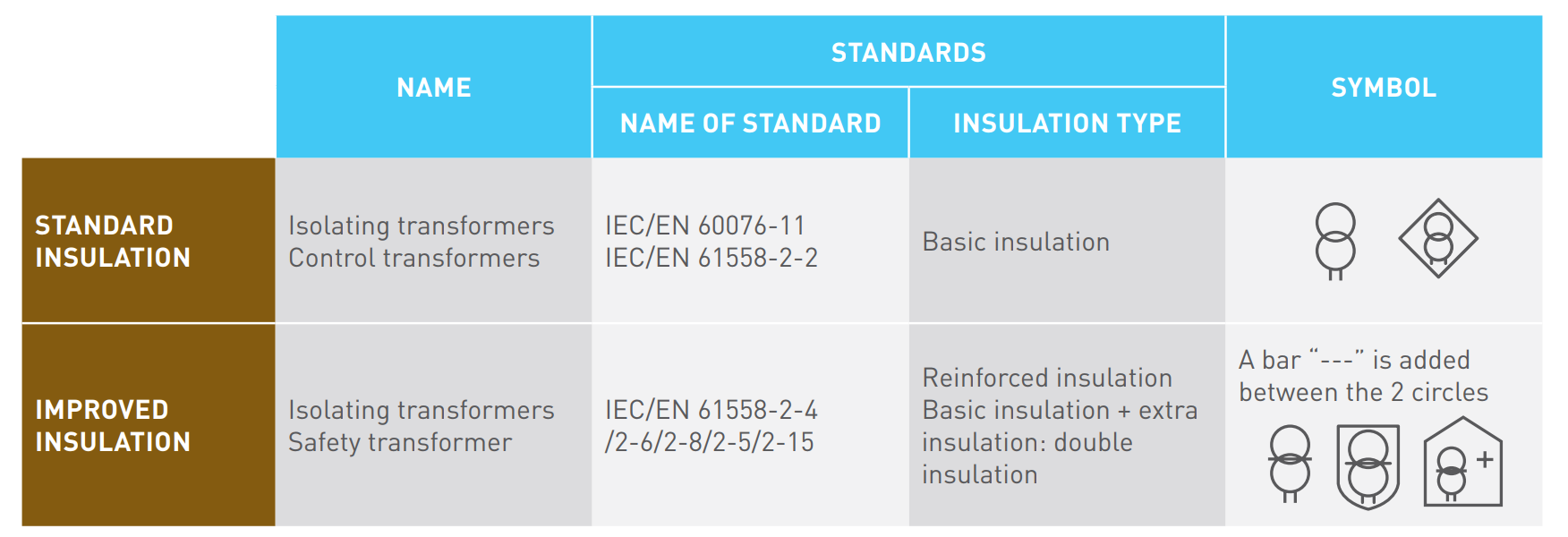

罗格朗全系列变压器依据产品用途、绝缘等级及防护能力，分别合规适配 IEC/EN 61558 系列、IEC/EN 60076-11 等国际与欧盟标准。下文所有定义、适用标准均严格对标 Legrand 2023-2024 官方产品技术规范。

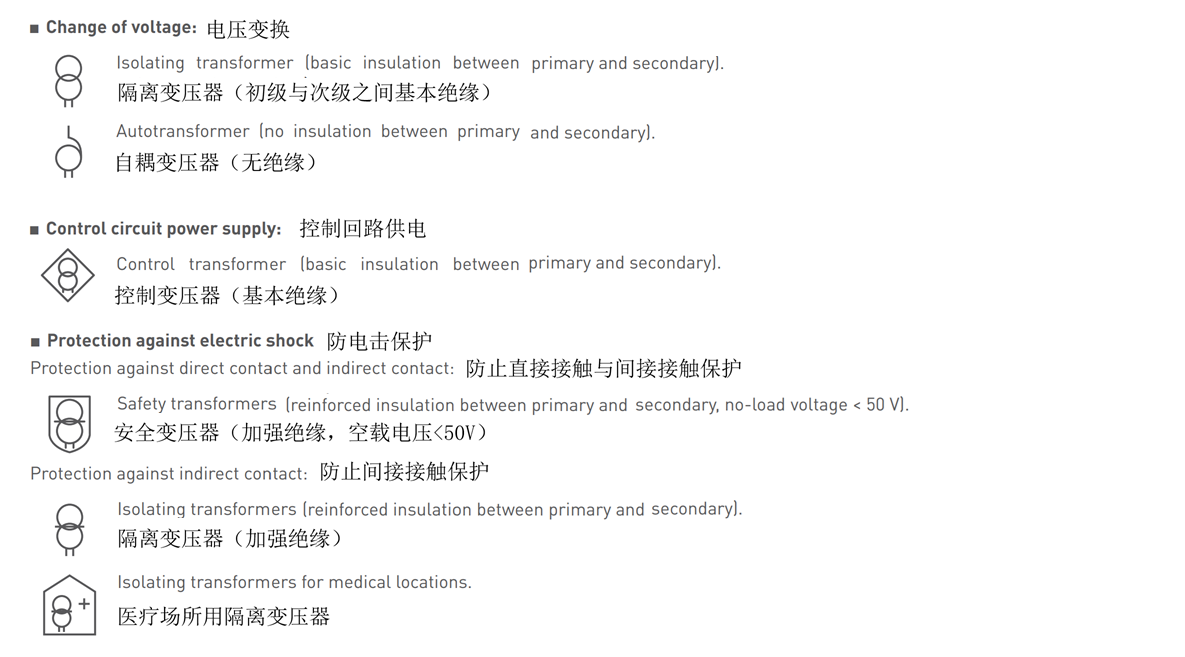

二、官方图标标准化释义
1. 基本绝缘隔离变压器 Isolating Transformer（Basic Insulation）
标识特征：无外框双绕组标准标记
技术定义：属于标准安装型隔离变压器，初级与次级绕组采用基础绝缘结构，核心用于电气电压变换、配电系统中性点接地方式改造。该类变压器无绝缘防护冗余，不具备自动防触电能力，现场应用必须配套外置人身防护装置。
执行标准：基础架构遵循 IEC/EN 60076-11（标准安装隔离变压器通用规范），仅用于电压变换、系统中性点接地改造，无内置人员触电防护能力
2. 自耦变压器 Autotransformer
标识特征：单绕组抽头式专属标记
技术定义：初、次级共用一体式绕组结构，绕组之间无电气绝缘隔离，仅依靠电磁耦合实现电压变换，无电气隔离性能。
执行标准：IEC 61558-2-2
3. 控制变压器 Control Transformer
标识特征：菱形外框包裹双绕组结构标记（专属控制类产品标识）
技术定义：初、次级采用基本绝缘结构，专为工业自动化控制回路设计，为接触器、电磁阀、控制模块等低压控制设备提供稳定工作电源，是工业控制系统专用供电变压器。
执行标准：主体适配控制类专用标准IEC/EN 61558-2-2；次级电压＞50V 兼容 IEC/EN 61558-2-4 隔离规范，次级电压＜50V 兼容 IEC/EN 61558-2-6 安全规范，满足电压降、瞬时峰值功率等控制回路专属指标
4. 安全隔离变压器 Safety Transformer（SELV）
标识特征：盾牌防护外框双绕组标记（安全防护专属标识）
技术定义：初、次级采用加强绝缘结构，次级空载电压低于50V，属于SELV安全特低电压设备。可同时实现直接接触与间接接触触电双重防护，为人员接触类低压设备提供安全供电保障。
执行标准：专用安全变压器标准 IEC/EN 61558-2-6，适配所有次级空载电压＜50V 的安全型供电场景
5. 加强绝缘隔离变压器 Isolating Transformer（Reinforced Insulation）
标识特征：无外框、内置加强绝缘标识双绕组标记
技术定义：初、次级采用加强绝缘结构，具备间接接触触电防护能力。该产品仅针对绝缘故障引发的间接触电风险进行防护，不支持直接接触防护，次级输出电压可超过50V，不适用于人体直接接触场景。
执行标准：隔离变压器通用标准 IEC/EN 61558-2-4，采用加强绝缘结构，仅适配间接接触防护工况
6. 医疗场所专用隔离变压器 Medical Location Isolating Transformer
标识特征：医疗场景专属房屋外框+医疗标识标记
技术定义：专为医疗监护区域 IT 不接地隔离供电系统设计，在满足 IEC/EN 61558-2-4 通用隔离要求基础上，额外符合医疗专用规范。具备空载漏电流≤0.5mA、限制浪涌电流、内置静电屏蔽层、温度监测组件等专属配置，最大限度规避医疗场景漏电风险，保障患者及设备供电安全。
执行标准：双重合规IEC/EN 61558-2-4 + IEC/EN 61558-2-15（医疗场所专用变压器强制标准）
三、选型规范说明
1. 本文所述标识为罗格朗官方产品分类视觉识别标记，用于快速区分产品功能、绝缘等级与应用场景，不可作为产品技术参数及安全认证依据。
2. 产品最终技术参数、绝缘性能、防护等级及适用标准，均以罗格朗官方发布的产品数据表、测试报告及认证文件为准。
3. 项目选型、工程设计及合规验收，需严格参照对应IEC标准及项目属地电气规范执行。
参考资料
- EXB19045_TG_LV Transformers_EN.pdf
- LEGRAND CATALOGUE EDITION 2022_FR.PDF
Identification of Markings for Legrand Transformers
1. Isolating Transformer (Basic Insulation)
Marking Feature: Double windings without outer frame
Specification: Standard installation isolating transformer with basic insulation structure. It is applied to voltage transformation and neutral earthing system modification. Without inherent electric shock protection, external personal protection devices are mandatory during on-site application.
Standard Compliance: Complies with IEC/EN 60076-11 for standard installation isolating transformers, dedicated to voltage conversion and neutral earthing system adjustment without built-in personal electric shock protection.
Marking Feature: Single winding with tap structure
Specification: No electrical insulation between primary and secondary integrated windings. Voltage transformation is realized only through magnetic coupling without electrical isolation function.
Standard Compliance: IEC 61558-2-2
Marking Feature: Double windings with diamond outer frame
Specification: Equipped with basic insulation between primary and secondary. Specially developed for industrial control circuits, providing stable power supply for contactors, solenoid valves and automatic control components.
Standard Compliance: Primarily compliant with control transformer standardIEC/EN 61558-2-2 covering voltage drop and instantaneous power indicators. For Legrand product range, units with secondary voltage above 50V comply with IEC/EN 61558-2-4, and units with secondary voltage below 50V comply with IEC/EN 61558-2-6.
Marking Feature: Double windings with shield safety frame
Specification: Features reinforced insulation structure. The no-load secondary voltage is lower than 50V, complying with SELV system requirements. It provides comprehensive protection against both direct and indirect electric contact.
Standard Compliance: Complies with safety transformer standard IEC/EN 61558-2-6 for SELV applications with no-load secondary voltage below 50V.
5. Isolating Transformer (Reinforced Insulation)
Marking Feature: Double windings with reinforced insulation marking, no outer frame
Specification: Adopts reinforced insulation between primary and secondary. It only provides protection against indirect contact, without direct contact protection. The secondary output voltage may exceed 50V, not applicable for direct human contact scenarios.
Standard Compliance: Complies with isolating transformer standard IEC/EN 61558-2-4, providing reinforced insulation and indirect contact protection only.
6. Medical Location Isolating Transformer
Marking Feature: Medical exclusive frame with professional medical mark
Specification: Designed for medical IT ungrounded power supply systems. It meets general isolation requirements of IEC/EN 61558-2-4 and exclusive medical regulations of IEC/EN 61558-2-15, including 0.5mA max no-load earth leakage current, inrush current limitation, electrostatic shield and temperature monitoring components.
Standard Compliance: Dual certificationIEC/EN 61558-2-4 + IEC/EN 61558-2-15
1. All markings are official Legrand product classification visual identifiers for recognition only, not applicable for electrical engineering drawing or official compliance verification.
2. All technical specifications, insulation levels and safety performances are subject to the official Legrand datasheets, test reports and certification documents.
3. Product selection and engineering design shall comply with relevant IEC standards and local electrical regulations.
