▊ 概要

高思（GAOSSI^®）专业供应德国西门子（SIEMENS）品牌电源（Power Supply）SITOP系列6EP1332-2BA20等产品，应用在机床、注塑机、电梯控制、包装机械、输送系统、工业自动化控制、控制柜、楼宇电气、PLC控制、信号系统、楼宇安防、新能源及市政工程等领域。

—— ◇ ——

▣ BRIEF INTRODUCTION

DIN导轨电源（DIN rail power supply）
SITOP系列
6EP1332-2BA20
SITOP PSU100S/1AC/24VDC/2.5A
SITOP PSU100S 24 V/2.5 A stabilized power supply input: 120/230 V AC output: 24 V DC/2.5 A
60W
Snaps onto DIN rail EN 60715 35×7.5/15

※ 图片仅供参考 Pictures shown are for illustrative purposes only.

产品介绍

—— 製品紹介 | Product Introduction ——

▊ 属性

品名 NAME	型号 TYPE	系列 SERIES
电源（Power Supply）	6EP1332-2BA20	SITOP系列
品牌 BRAND	系别 COUNTRY	产地 ORIGIN
西门子（SIEMENS）	德国	RO/OTHERS

▊ 型号

高思（GAOSSI^®）专业供应以下系列型号产品：

☑ 系列型号

• 略

说明：以上系列型号源自于产品目录或企业官网。如有发生变更，恕不另行通知，具体可参考官网、产品目录或官方通告。

☑ 型号说明

• 略

☑ 型号示例

• 略

提示：了解更多系列型号，可咨询客服、参考产品目录或企业官网。

▊ 规格

☑ 规格参数

Article number	6EP1332-2BA20
General information
input
type of the power supply network	1-phase AC
supply voltage at AC	Automatic range selection
supply voltage	120 V/230 V
input voltage 1 at AC	85 … 132 V
input voltage 2 at AC	170 … 264 V
wide range input	No
overvoltage overload capability	2.3 × Vin rated, 1.3 ms
buffering time for rated value of the output current in the event of power failure minimum	20 ms
operating condition of the mains buffering	at Vin = 93/187 V
line frequency	50/60 Hz
line frequency	47 … 63 Hz
input current
● at rated input voltage 120 V	1.25 A
● at rated input voltage 230 V	0.74 A
current limitation of inrush current at 25 °C maximum	33 A
I2t value maximum	0.4 A²·s
fuse protection type	T 3,15 A/250 V (not accessible)
fuse protection type in the feeder	Recommended miniature circuit breaker: from 3 A characteristic C
output
voltage curve at output	Controlled, isolated DC voltage
output voltage at DC rated value	24 V
output voltage
● at output 1 at DC rated value	24 V
0
output voltage adjustable	Yes; via potentiometer
adjustable output voltage	22.8 … 28 V
relative overall tolerance of the voltage	3 %
relative control precision of the output voltage
● on slow fluctuation of input voltage	0.1 %
● on slow fluctuation of ohm loading	1 %
residual ripple
● maximum	150 mV
● typical	30 mV
voltage peak
● maximum	240 mV
● typical	70 mV
display version for normal operation	Green LED for 24 V OK
type of signal at output	Relay contact (NO contact, rating 60 V DC/ 0.3 A) for “24 V OK”
behavior of the output voltage when switching on	Overshoot of Vout < 3 %
response delay maximum	0.3 s
voltage increase time of the output voltage
● typical	15 ms
output current
● rated value	2.5 A
● rated range	0 … 3 A; 3 A up to +45°C; +60 … +70 °C: Derating 3%/K
0
supplied active power typical	60 W
short-term overload current
● on short-circuiting during the start-up typical	9 A
● at short-circuit during operation typical	8 A
duration of overloading capability for excess current
● on short-circuiting during the start-up	800 ms
● at short-circuit during operation	100 ms
bridging of equipment	Yes
number of parallel-switched equipment resources for increasing the power	2
efficiency
efficiency in percent	85 %
power loss [W]
● at rated output voltage for rated value of the output current typical	10 W
closed-loop control
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	0.3 %
relative control precision of the output voltage at load step of resistive load 10/90/10 % typical	5 %
setting time
● load step 10 to 90% typical	1 ms
● load step 90 to 10% typical	1 ms
protection and monitoring
design of the overvoltage protection	protection against overvoltage in case of internal fault Vout < 33 V
property of the output short-circuit proof	Yes
design of short-circuit protection	Constant current characteristic
response value current limitation	3 … 3.4 A
overcurrent overload capability
● in normal operation	overload capability 150 % Iout rated up to 5 s/min
enduring short circuit current RMS value
● typical	3.4 A
safety
galvanic isolation between input and output	Yes
galvanic isolation	Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection class	Class I
leakage current
● maximum	3.5 mA
● typical	0.4 mA
protection class IP	IP20
EMC
standard
● for emitted interference	EN 55022 Class B
● for mains harmonics limitation	not applicable
● for interference immunity	EN 61000-6-2
standards, specifications, approvals
certificate of suitability
● CE marking	Yes
● UL approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
● UKCA marking	Yes
● EAC approval	Yes
● NEC Class 2	No
type of certification
● CB-certificate	Yes
MTBF at 40 °C	1 804 044 h
standards, specifications, approvals hazardous environments
certificate of suitability
● IECEx	No
● ATEX	No
● ULhazloc approval	No
● FM registration	No
standards, specifications, approvals marine classification
shipbuilding approval	Yes
Marine classification association
● American Bureau of Shipping Europe Ltd. (ABS)	No
● French marine classification society (BV)	Yes
● Det Norske Veritas (DNV)	Yes
● Lloyds Register of Shipping (LRS)	No
standards, specifications, approvals Environmental Product Declaration
Environmental Product Declaration	Yes
global warming potential [CO2 eq]
● total	252.5 kg
● during manufacturing	8.2 kg
● during operation	244 kg
● after end of life	0.24 kg
ambient conditions
ambient temperature
● during operation	-25 … +70 °C; with natural convection
● during transport	-40 … +85 °C
● during storage	-40 … +85 °C
environmental category according to IEC 60721	Climate class 3K3, 5 … 95% no condensation
connection method
type of electrical connection	screw terminal
● at input	L, N, PE: 1 screw terminal each for 0.5 … 2.5 mm² single-core/finely stranded
● at output	+, -: 2 screw terminals each for 0.5 … 2.5 mm²
● for auxiliary contacts	Alarm signals: 2 screw terminals for 0.5 … 2.5 mm²
● for signaling contact	2 screw terminals for 0.5 … 2.5 mm²
mechanical data
width × height × depth of the enclosure	32.5 × 125 × 120 mm
installation width × mounting height	32.5 mm × 225 mm
required spacing
● top	50 mm
● bottom	50 mm
● left	0 mm
● right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35×7.5/15
● DIN-rail mounting	Yes
● S7 rail mounting	No
● wall mounting	No
housing can be lined up	Yes
net weight	0.32 kg
accessories
electrical accessories	Buffer module
mechanical accessories	Device identification label 20 mm × 7 mm, pale turquoise 3RT1900-1SB20

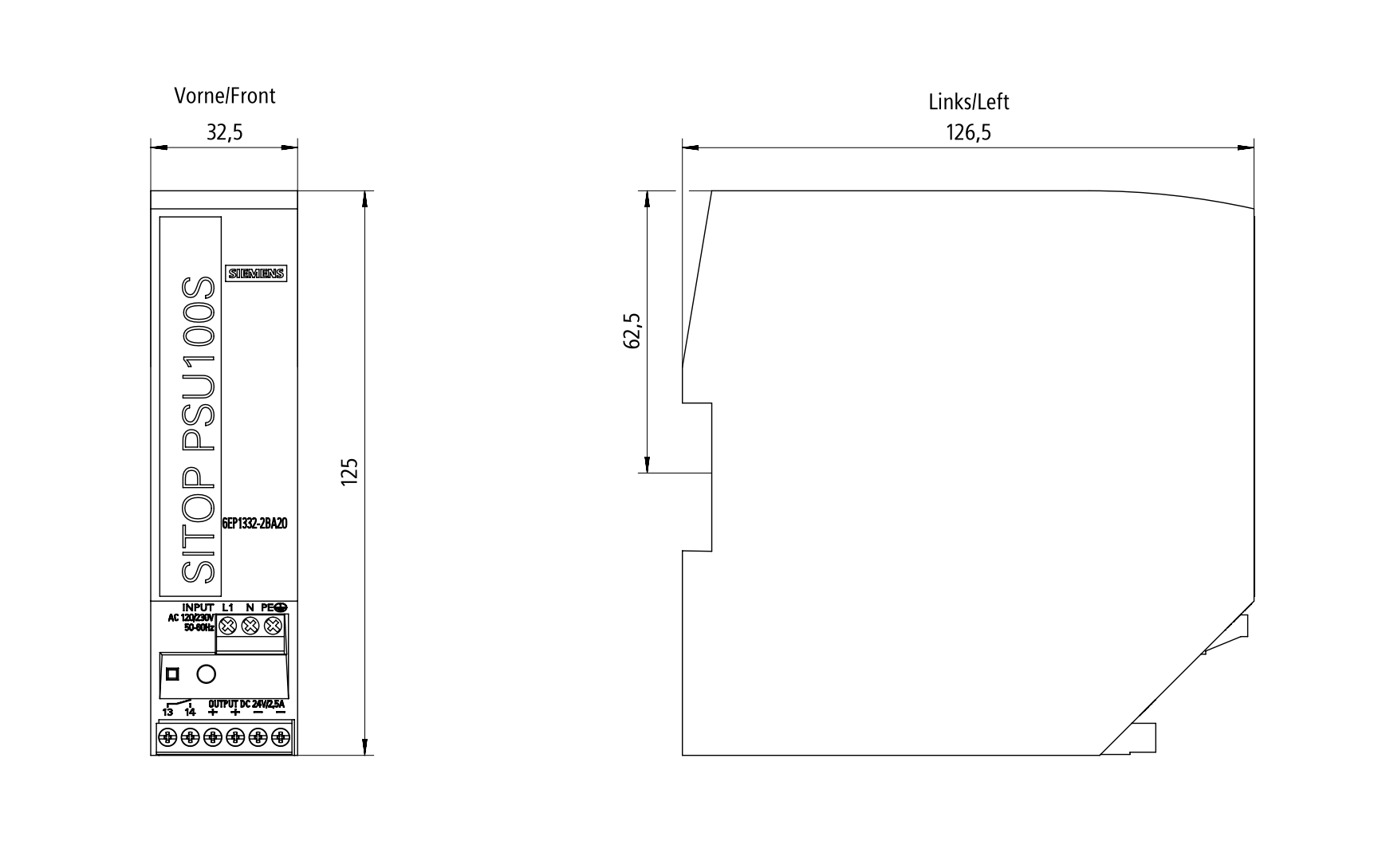

☑ 外形规格

说明：以上规格参数源自于产品目录或企业官网。如有发生变更，恕不另行通知，具体可参考官网、产品目录或官方通告。

▊ 特点

• 略

▊ 认证

General product approvals (vary by model)

CE
UL
CSA
UKCA
EAC
RCM
EPD

▊ 应用

应用在机床、注塑机、电梯控制、包装机械、输送系统、工业自动化控制、控制柜、楼宇电气、PLC控制、信号系统、楼宇安防、新能源及市政工程等领域。

—— ✤ ——
