UEDA 植田 压力开关 PL-550,PH-550系列 圧力スイッチ

▊ 概要

高思（GAOSSI^®）专业供应日本品牌植田（UEDA） 压力开关（圧力スイッチ，Pressure Switch）PL-550、PH-550系列PL-550-1-R3B、PL-550-2-R3B、PL-550-3-R3B、PH-550-8-R3SB等产品，PL-550系列作为通用压力开关广泛应用于各行各业。与一般的压缩机或泵不同，此压力开关的特性最适合于想要设定较窄的开闭压差（ON-OFF 宽度）的情况。主要用于仪表相关的水压、气压、液压等。

—— ◇ ——

※ Pictures shown are for illustrative purposes only.

▊ 属性

品名 NAME	型号 TYPE	系列 SERIES
压力开关（圧力スイッチ，Pressure Switch）	PL-550-1-R3B、PL-550-2-R3B、PL-550-3-R3B、PH-550-8-R3SB等	PL-550、PH-550系列
品牌 BRAND	系别 COUNTRY	产地 ORIGIN
UEDA 植田	日本	日本

▊ 型号

高思（GAOSSI^®）专业供应以下系列型号产品：

☑ 系列型号

型式	最低圧力調整範囲 (Range) Mpa	最高圧力調整範囲 (Range) Mpa	最小開閉圧力差範囲 (Dlff.) Mpa	最大開閉圧力差範囲 (Dlff.) Mpa	耐圧力 MPa
PL-550-1-R3B	0	0.16	0.012	0.1	1.5
PL-550-2-R3B	0	0.3	0.015	0.2	1.5
PL-550-3-R3B	0.01	0.5	0.02	0.3	1.5
PL-550-4-R3B	0.02	0.7	0.025	0.35	1.5
PL-550-5-R3B	0.05	1	0.03	0.4	1.5
PL-550-6-R3B	0.2	2	0.08	0.5	2.5
PL-550-7-R3B	0.5	4	0.15	1	5
PL-651-10-R3B	0	0.12	0.005	0.06	0.5
PL-651-11-R3B	0	0.2	0.005	0.15	0.5
PL-651-12-R3B	0.01	0.5	0.01	0.25	1
PH-550-8-R3SB	0.5	6	0.2	1	10
PH-550-9-R3SB	1	8	0.35	2	10

说明：以上系列型号源自于产品目录或企业官网。如有发生变更，恕不另行通知，具体可参考官网、产品目录或官方通告。

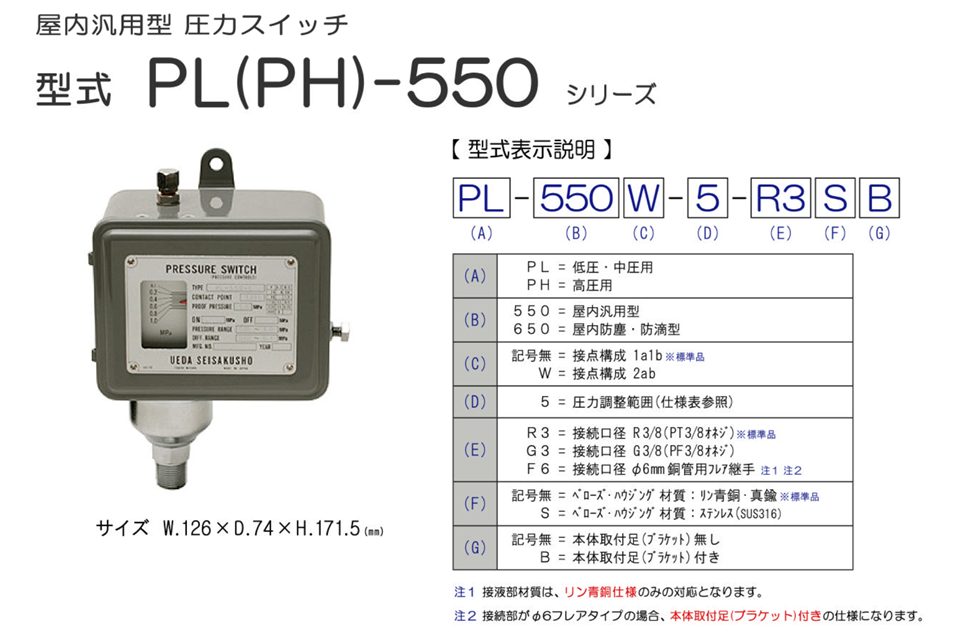

☑ 型号说明

☑ 型号示例

PL-550W-1-R3SB	PL-550W-1-G3SB	PL-550W-1-F6SB	PL-550W-2-R3SB	PL-550W-2-G3SB	PL-550W-2-F6SB
PL-550W-1-R3SB	PL-550W-1-G3SB	PL-550W-1-F6SB	PL-550W-2-R3SB	PL-550W-2-G3SB	PL-550W-2-F6SB
PL-550W-1-R3SB	PL-550W-1-G3SB	PL-550W-1-F6SB	PL-550W-2-R3SB	PL-550W-2-G3SB	PL-550W-2-F6SB
PL-550W-1-R3SB	PL-550W-1-G3SB	PL-550W-1-F6SB	PL-550W-2-R3SB	PL-550W-2-G3SB	PL-550W-2-F6SB
PL-550W-1-R3SB	PL-550W-1-G3SB	PL-550W-1-F6SB	PL-550W-2-R3SB	PL-550W-2-G3SB	PL-550W-2-F6SB
PL-550W-1-R3SB	PL-550W-1-G3SB	PL-550W-1-F6SB	PL-550W-2-R3SB	PL-550W-2-G3SB	PL-550W-2-F6SB
PL-550W-1-R3SB	PL-550W-1-G3SB	PL-550W-1-F6SB	PL-550W-2-R3SB	PL-550W-2-G3SB	PL-550W-2-F6SB
PL-550W-1-R3S	PL-550W-1-G3S	PL-550W-1-F6S	PL-550W-2-R3S	PL-550W-2-G3S	PL-550W-2-F6S
PL-550W-1-R3S	PL-550W-1-G3S	PL-550W-1-F6S	PL-550W-2-R3S	PL-550W-2-G3S	PL-550W-2-F6S
PL-550W-1-R3S	PL-550W-1-G3S	PL-550W-1-F6S	PL-550W-2-R3S	PL-550W-2-G3S	PL-550W-2-F6S
PL-550W-1-R3S	PL-550W-1-G3S	PL-550W-1-F6S	PL-550W-2-R3S	PL-550W-2-G3S	PL-550W-2-F6S
PL-550W-1-R3S	PL-550W-1-G3S	PL-550W-1-F6S	PL-550W-2-R3S	PL-550W-2-G3S	PL-550W-2-F6S
PL-550W-1-R3S	PL-550W-1-G3S	PL-550W-1-F6S	PL-550W-2-R3S	PL-550W-2-G3S	PL-550W-2-F6S
PL-550W-1-R3S	PL-550W-1-G3S	PL-550W-1-F6S	PL-550W-2-R3S	PL-550W-2-G3S	PL-550W-2-F6S
PL-550W-1-R3S	PL-550W-1-G3S	PL-550W-1-F6S	PL-550W-2-R3S	PL-550W-2-G3S	PL-550W-2-F6S
PL-550W-1-R3B	PL-550W-1-G3B	PL-550W-1-F6B	PL-550W-2-R3B	PL-550W-2-G3B	PL-550W-2-F6B
PL-550W-1-R3B	PL-550W-1-G3B	PL-550W-1-F6B	PL-550W-2-R3B	PL-550W-2-G3B	PL-550W-2-F6B
PL-550W-1-R3B	PL-550W-1-G3B	PL-550W-1-F6B	PL-550W-2-R3B	PL-550W-2-G3B	PL-550W-2-F6B
PL-550W-1-R3B	PL-550W-1-G3B	PL-550W-1-F6B	PL-550W-2-R3B	PL-550W-2-G3B	PL-550W-2-F6B
PL-550W-1-R3B	PL-550W-1-G3B	PL-550W-1-F6B	PL-550W-2-R3B	PL-550W-2-G3B	PL-550W-2-F6B
PL-550W-1-R3B	PL-550W-1-G3B	PL-550W-1-F6B	PL-550W-2-R3B	PL-550W-2-G3B	PL-550W-2-F6B
PL-550W-1-R3B	PL-550W-1-G3B	PL-550W-1-F6B	PL-550W-2-R3B	PL-550W-2-G3B	PL-550W-2-F6B
PL-550W-1-R3B	PL-550W-1-G3B	PL-550W-1-F6B	PL-550W-2-R3B	PL-550W-2-G3B	PL-550W-2-F6B
PL-550W-1-R3	PL-550W-1-G3	PL-550W-1-F6	PL-550W-2-R3	PL-550W-2-G3	PL-550W-2-F6
PL-550W-1-R3	PL-550W-1-G3	PL-550W-1-F6	PL-550W-2-R3	PL-550W-2-G3	PL-550W-2-F6
PL-550W-1-R3	PL-550W-1-G3	PL-550W-1-F6	PL-550W-2-R3	PL-550W-2-G3	PL-550W-2-F6
PL-550W-1-R3	PL-550W-1-G3	PL-550W-1-F6	PL-550W-2-R3	PL-550W-2-G3	PL-550W-2-F6
PL-550W-1-R3	PL-550W-1-G3	PL-550W-1-F6	PL-550W-2-R3	PL-550W-2-G3	PL-550W-2-F6
PL-550W-1-R3	PL-550W-1-G3	PL-550W-1-F6	PL-550W-2-R3	PL-550W-2-G3	PL-550W-2-F6
PL-550W-1-R3	PL-550W-1-G3	PL-550W-1-F6	PL-550W-2-R3	PL-550W-2-G3	PL-550W-2-F6
PL-550W-1-R3	PL-550W-1-G3	PL-550W-1-F6	PL-550W-2-R3	PL-550W-2-G3	PL-550W-2-F6
PL-550W-3-R3SB	PL-550W-3-G3SB	PL-550W-3-F6SB	PL-550W-4-R3SB	PL-550W-4-G3SB	PL-550W-4-F6SB
PL-550W-3-R3SB	PL-550W-3-G3SB	PL-550W-3-F6SB	PL-550W-4-R3SB	PL-550W-4-G3SB	PL-550W-4-F6SB
PL-550W-3-R3SB	PL-550W-3-G3SB	PL-550W-3-F6SB	PL-550W-4-R3SB	PL-550W-4-G3SB	PL-550W-4-F6SB
PL-550W-3-R3SB	PL-550W-3-G3SB	PL-550W-3-F6SB	PL-550W-4-R3SB	PL-550W-4-G3SB	PL-550W-4-F6SB
PL-550W-3-R3SB	PL-550W-3-G3SB	PL-550W-3-F6SB	PL-550W-4-R3SB	PL-550W-4-G3SB	PL-550W-4-F6SB
PL-550W-3-R3SB	PL-550W-3-G3SB	PL-550W-3-F6SB	PL-550W-4-R3SB	PL-550W-4-G3SB	PL-550W-4-F6SB
PL-550W-3-R3SB	PL-550W-3-G3SB	PL-550W-3-F6SB	PL-550W-4-R3SB	PL-550W-4-G3SB	PL-550W-4-F6SB
PL-550W-3-R3S	PL-550W-3-G3S	PL-550W-3-F6S	PL-550W-4-R3S	PL-550W-4-G3S	PL-550W-4-F6S
PL-550W-3-R3S	PL-550W-3-G3S	PL-550W-3-F6S	PL-550W-4-R3S	PL-550W-4-G3S	PL-550W-4-F6S
PL-550W-3-R3S	PL-550W-3-G3S	PL-550W-3-F6S	PL-550W-4-R3S	PL-550W-4-G3S	PL-550W-4-F6S
PL-550W-3-R3S	PL-550W-3-G3S	PL-550W-3-F6S	PL-550W-4-R3S	PL-550W-4-G3S	PL-550W-4-F6S
PL-550W-3-R3S	PL-550W-3-G3S	PL-550W-3-F6S	PL-550W-4-R3S	PL-550W-4-G3S	PL-550W-4-F6S
PL-550W-3-R3S	PL-550W-3-G3S	PL-550W-3-F6S	PL-550W-4-R3S	PL-550W-4-G3S	PL-550W-4-F6S
PL-550W-3-R3S	PL-550W-3-G3S	PL-550W-3-F6S	PL-550W-4-R3S	PL-550W-4-G3S	PL-550W-4-F6S
PL-550W-3-R3S	PL-550W-3-G3S	PL-550W-3-F6S	PL-550W-4-R3S	PL-550W-4-G3S	PL-550W-4-F6S
PL-550W-3-R3B	PL-550W-3-G3B	PL-550W-3-F6B	PL-550W-4-R3B	PL-550W-4-G3B	PL-550W-4-F6B
PL-550W-3-R3B	PL-550W-3-G3B	PL-550W-3-F6B	PL-550W-4-R3B	PL-550W-4-G3B	PL-550W-4-F6B
PL-550W-3-R3B	PL-550W-3-G3B	PL-550W-3-F6B	PL-550W-4-R3B	PL-550W-4-G3B	PL-550W-4-F6B
PL-550W-3-R3B	PL-550W-3-G3B	PL-550W-3-F6B	PL-550W-4-R3B	PL-550W-4-G3B	PL-550W-4-F6B
PL-550W-3-R3B	PL-550W-3-G3B	PL-550W-3-F6B	PL-550W-4-R3B	PL-550W-4-G3B	PL-550W-4-F6B
PL-550W-3-R3B	PL-550W-3-G3B	PL-550W-3-F6B	PL-550W-4-R3B	PL-550W-4-G3B	PL-550W-4-F6B
PL-550W-3-R3B	PL-550W-3-G3B	PL-550W-3-F6B	PL-550W-4-R3B	PL-550W-4-G3B	PL-550W-4-F6B
PL-550W-3-R3B	PL-550W-3-G3B	PL-550W-3-F6B	PL-550W-4-R3B	PL-550W-4-G3B	PL-550W-4-F6B
PL-550W-3-R3	PL-550W-3-G3	PL-550W-3-F6	PL-550W-4-R3	PL-550W-4-G3	PL-550W-4-F6
PL-550W-3-R3	PL-550W-3-G3	PL-550W-3-F6	PL-550W-4-R3	PL-550W-4-G3	PL-550W-4-F6
PL-550W-3-R3	PL-550W-3-G3	PL-550W-3-F6	PL-550W-4-R3	PL-550W-4-G3	PL-550W-4-F6
PL-550W-3-R3	PL-550W-3-G3	PL-550W-3-F6	PL-550W-4-R3	PL-550W-4-G3	PL-550W-4-F6
PL-550W-3-R3	PL-550W-3-G3	PL-550W-3-F6	PL-550W-4-R3	PL-550W-4-G3	PL-550W-4-F6
PL-550W-3-R3	PL-550W-3-G3	PL-550W-3-F6	PL-550W-4-R3	PL-550W-4-G3	PL-550W-4-F6
PL-550W-3-R3	PL-550W-3-G3	PL-550W-3-F6	PL-550W-4-R3	PL-550W-4-G3	PL-550W-4-F6
PL-550W-3-R3	PL-550W-3-G3	PL-550W-3-F6	PL-550W-4-R3	PL-550W-4-G3	PL-550W-4-F6
PL-550W-5-R3SB	PL-550W-5-G3SB	PL-550W-5-F6SB	PL-550W-6-R3SB	PL-550W-6-G3SB	PL-550W-6-F6SB
PL-550W-5-R3SB	PL-550W-5-G3SB	PL-550W-5-F6SB	PL-550W-6-R3SB	PL-550W-6-G3SB	PL-550W-6-F6SB
PL-550W-5-R3SB	PL-550W-5-G3SB	PL-550W-5-F6SB	PL-550W-6-R3SB	PL-550W-6-G3SB	PL-550W-6-F6SB
PL-550W-5-R3SB	PL-550W-5-G3SB	PL-550W-5-F6SB	PL-550W-6-R3SB	PL-550W-6-G3SB	PL-550W-6-F6SB
PL-550W-5-R3SB	PL-550W-5-G3SB	PL-550W-5-F6SB	PL-550W-6-R3SB	PL-550W-6-G3SB	PL-550W-6-F6SB
PL-550W-5-R3SB	PL-550W-5-G3SB	PL-550W-5-F6SB	PL-550W-6-R3SB	PL-550W-6-G3SB	PL-550W-6-F6SB
PL-550W-5-R3SB	PL-550W-5-G3SB	PL-550W-5-F6SB	PL-550W-6-R3SB	PL-550W-6-G3SB	PL-550W-6-F6SB
PL-550W-5-R3S	PL-550W-5-G3S	PL-550W-5-F6S	PL-550W-6-R3S	PL-550W-6-G3S	PL-550W-6-F6S
PL-550W-5-R3S	PL-550W-5-G3S	PL-550W-5-F6S	PL-550W-6-R3S	PL-550W-6-G3S	PL-550W-6-F6S
PL-550W-5-R3S	PL-550W-5-G3S	PL-550W-5-F6S	PL-550W-6-R3S	PL-550W-6-G3S	PL-550W-6-F6S
PL-550W-5-R3S	PL-550W-5-G3S	PL-550W-5-F6S	PL-550W-6-R3S	PL-550W-6-G3S	PL-550W-6-F6S
PL-550W-5-R3S	PL-550W-5-G3S	PL-550W-5-F6S	PL-550W-6-R3S	PL-550W-6-G3S	PL-550W-6-F6S
PL-550W-5-R3S	PL-550W-5-G3S	PL-550W-5-F6S	PL-550W-6-R3S	PL-550W-6-G3S	PL-550W-6-F6S
PL-550W-5-R3S	PL-550W-5-G3S	PL-550W-5-F6S	PL-550W-6-R3S	PL-550W-6-G3S	PL-550W-6-F6S
PL-550W-5-R3S	PL-550W-5-G3S	PL-550W-5-F6S	PL-550W-6-R3S	PL-550W-6-G3S	PL-550W-6-F6S
PL-550W-5-R3B	PL-550W-5-G3B	PL-550W-5-F6B	PL-550W-6-R3B	PL-550W-6-G3B	PL-550W-6-F6B
PL-550W-5-R3B	PL-550W-5-G3B	PL-550W-5-F6B	PL-550W-6-R3B	PL-550W-6-G3B	PL-550W-6-F6B
PL-550W-5-R3B	PL-550W-5-G3B	PL-550W-5-F6B	PL-550W-6-R3B	PL-550W-6-G3B	PL-550W-6-F6B
PL-550W-5-R3B	PL-550W-5-G3B	PL-550W-5-F6B	PL-550W-6-R3B	PL-550W-6-G3B	PL-550W-6-F6B
PL-550W-5-R3B	PL-550W-5-G3B	PL-550W-5-F6B	PL-550W-6-R3B	PL-550W-6-G3B	PL-550W-6-F6B
PL-550W-5-R3B	PL-550W-5-G3B	PL-550W-5-F6B	PL-550W-6-R3B	PL-550W-6-G3B	PL-550W-6-F6B
PL-550W-5-R3B	PL-550W-5-G3B	PL-550W-5-F6B	PL-550W-6-R3B	PL-550W-6-G3B	PL-550W-6-F6B
PL-550W-5-R3B	PL-550W-5-G3B	PL-550W-5-F6B	PL-550W-6-R3B	PL-550W-6-G3B	PL-550W-6-F6B
PL-550W-5-R3	PL-550W-5-G3	PL-550W-5-F6	PL-550W-6-R3	PL-550W-6-G3	PL-550W-6-F6
PL-550W-5-R3	PL-550W-5-G3	PL-550W-5-F6	PL-550W-6-R3	PL-550W-6-G3	PL-550W-6-F6
PL-550W-5-R3	PL-550W-5-G3	PL-550W-5-F6	PL-550W-6-R3	PL-550W-6-G3	PL-550W-6-F6
PL-550W-5-R3	PL-550W-5-G3	PL-550W-5-F6	PL-550W-6-R3	PL-550W-6-G3	PL-550W-6-F6
PL-550W-5-R3	PL-550W-5-G3	PL-550W-5-F6	PL-550W-6-R3	PL-550W-6-G3	PL-550W-6-F6
PL-550W-5-R3	PL-550W-5-G3	PL-550W-5-F6	PL-550W-6-R3	PL-550W-6-G3	PL-550W-6-F6
PL-550W-5-R3	PL-550W-5-G3	PL-550W-5-F6	PL-550W-6-R3	PL-550W-6-G3	PL-550W-6-F6
PL-550W-5-R3	PL-550W-5-G3	PL-550W-5-F6	PL-550W-6-R3	PL-550W-6-G3	PL-550W-6-F6
PL-550W-7-R3SB	PL-550W-7-G3SB	PL-550W-7-F6SB
PL-550W-7-R3SB	PL-550W-7-G3SB	PL-550W-7-F6SB
PL-550W-7-R3SB	PL-550W-7-G3SB	PL-550W-7-F6SB
PL-550W-7-R3SB	PL-550W-7-G3SB	PL-550W-7-F6SB
PL-550W-7-R3SB	PL-550W-7-G3SB	PL-550W-7-F6SB
PL-550W-7-R3SB	PL-550W-7-G3SB	PL-550W-7-F6SB
PL-550W-7-R3SB	PL-550W-7-G3SB	PL-550W-7-F6SB
PL-550W-7-R3S	PL-550W-7-G3S	PL-550W-7-F6S
PL-550W-7-R3S	PL-550W-7-G3S	PL-550W-7-F6S
PL-550W-7-R3S	PL-550W-7-G3S	PL-550W-7-F6S
PL-550W-7-R3S	PL-550W-7-G3S	PL-550W-7-F6S
PL-550W-7-R3S	PL-550W-7-G3S	PL-550W-7-F6S
PL-550W-7-R3S	PL-550W-7-G3S	PL-550W-7-F6S
PL-550W-7-R3S	PL-550W-7-G3S	PL-550W-7-F6S
PL-550W-7-R3S	PL-550W-7-G3S	PL-550W-7-F6S
PL-550W-7-R3B	PL-550W-7-G3B	PL-550W-7-F6B
PL-550W-7-R3B	PL-550W-7-G3B	PL-550W-7-F6B
PL-550W-7-R3B	PL-550W-7-G3B	PL-550W-7-F6B
PL-550W-7-R3B	PL-550W-7-G3B	PL-550W-7-F6B
PL-550W-7-R3B	PL-550W-7-G3B	PL-550W-7-F6B
PL-550W-7-R3B	PL-550W-7-G3B	PL-550W-7-F6B
PL-550W-7-R3B	PL-550W-7-G3B	PL-550W-7-F6B
PL-550W-7-R3B	PL-550W-7-G3B	PL-550W-7-F6B
PL-550W-7-R3	PL-550W-7-G3	PL-550W-7-F6
PL-550W-7-R3	PL-550W-7-G3	PL-550W-7-F6
PL-550W-7-R3	PL-550W-7-G3	PL-550W-7-F6
PL-550W-7-R3	PL-550W-7-G3	PL-550W-7-F6
PL-550W-7-R3	PL-550W-7-G3	PL-550W-7-F6
PL-550W-7-R3	PL-550W-7-G3	PL-550W-7-F6
PL-550W-7-R3	PL-550W-7-G3	PL-550W-7-F6
PL-550W-7-R3	PL-550W-7-G3	PL-550W-7-F6
PL-550-1-R3SB	PL-550-1-G3SB	PL-550-1-F6SB	PL-550-2-R3SB	PL-550-2-G3SB	PL-550-2-F6SB
PL-550-1-R3SB	PL-550-1-G3SB	PL-550-1-F6SB	PL-550-2-R3SB	PL-550-2-G3SB	PL-550-2-F6SB
PL-550-1-R3SB	PL-550-1-G3SB	PL-550-1-F6SB	PL-550-2-R3SB	PL-550-2-G3SB	PL-550-2-F6SB
PL-550-1-R3SB	PL-550-1-G3SB	PL-550-1-F6SB	PL-550-2-R3SB	PL-550-2-G3SB	PL-550-2-F6SB
PL-550-1-R3SB	PL-550-1-G3SB	PL-550-1-F6SB	PL-550-2-R3SB	PL-550-2-G3SB	PL-550-2-F6SB
PL-550-1-R3SB	PL-550-1-G3SB	PL-550-1-F6SB	PL-550-2-R3SB	PL-550-2-G3SB	PL-550-2-F6SB
PL-550-1-R3SB	PL-550-1-G3SB	PL-550-1-F6SB	PL-550-2-R3SB	PL-550-2-G3SB	PL-550-2-F6SB
PL-550-1-R3S	PL-550-1-G3S	PL-550-1-F6S	PL-550-2-R3S	PL-550-2-G3S	PL-550-2-F6S
PL-550-1-R3S	PL-550-1-G3S	PL-550-1-F6S	PL-550-2-R3S	PL-550-2-G3S	PL-550-2-F6S
PL-550-1-R3S	PL-550-1-G3S	PL-550-1-F6S	PL-550-2-R3S	PL-550-2-G3S	PL-550-2-F6S
PL-550-1-R3S	PL-550-1-G3S	PL-550-1-F6S	PL-550-2-R3S	PL-550-2-G3S	PL-550-2-F6S
PL-550-1-R3S	PL-550-1-G3S	PL-550-1-F6S	PL-550-2-R3S	PL-550-2-G3S	PL-550-2-F6S
PL-550-1-R3S	PL-550-1-G3S	PL-550-1-F6S	PL-550-2-R3S	PL-550-2-G3S	PL-550-2-F6S
PL-550-1-R3S	PL-550-1-G3S	PL-550-1-F6S	PL-550-2-R3S	PL-550-2-G3S	PL-550-2-F6S
PL-550-1-R3S	PL-550-1-G3S	PL-550-1-F6S	PL-550-2-R3S	PL-550-2-G3S	PL-550-2-F6S
PL-550-1-R3B	PL-550-1-G3B	PL-550-1-F6B	PL-550-2-R3B	PL-550-2-G3B	PL-550-2-F6B
PL-550-1-R3B	PL-550-1-G3B	PL-550-1-F6B	PL-550-2-R3B	PL-550-2-G3B	PL-550-2-F6B
PL-550-1-R3B	PL-550-1-G3B	PL-550-1-F6B	PL-550-2-R3B	PL-550-2-G3B	PL-550-2-F6B
PL-550-1-R3B	PL-550-1-G3B	PL-550-1-F6B	PL-550-2-R3B	PL-550-2-G3B	PL-550-2-F6B
PL-550-1-R3B	PL-550-1-G3B	PL-550-1-F6B	PL-550-2-R3B	PL-550-2-G3B	PL-550-2-F6B
PL-550-1-R3B	PL-550-1-G3B	PL-550-1-F6B	PL-550-2-R3B	PL-550-2-G3B	PL-550-2-F6B
PL-550-1-R3B	PL-550-1-G3B	PL-550-1-F6B	PL-550-2-R3B	PL-550-2-G3B	PL-550-2-F6B
PL-550-1-R3B	PL-550-1-G3B	PL-550-1-F6B	PL-550-2-R3B	PL-550-2-G3B	PL-550-2-F6B
PL-550-1-R3	PL-550-1-G3	PL-550-1-F6	PL-550-2-R3	PL-550-2-G3	PL-550-2-F6
PL-550-1-R3	PL-550-1-G3	PL-550-1-F6	PL-550-2-R3	PL-550-2-G3	PL-550-2-F6
PL-550-1-R3	PL-550-1-G3	PL-550-1-F6	PL-550-2-R3	PL-550-2-G3	PL-550-2-F6
PL-550-1-R3	PL-550-1-G3	PL-550-1-F6	PL-550-2-R3	PL-550-2-G3	PL-550-2-F6
PL-550-1-R3	PL-550-1-G3	PL-550-1-F6	PL-550-2-R3	PL-550-2-G3	PL-550-2-F6
PL-550-1-R3	PL-550-1-G3	PL-550-1-F6	PL-550-2-R3	PL-550-2-G3	PL-550-2-F6
PL-550-1-R3	PL-550-1-G3	PL-550-1-F6	PL-550-2-R3	PL-550-2-G3	PL-550-2-F6
PL-550-1-R3	PL-550-1-G3	PL-550-1-F6	PL-550-2-R3	PL-550-2-G3	PL-550-2-F6
PL-550-3-R3SB	PL-550-3-G3SB	PL-550-3-F6SB	PL-550-4-R3SB	PL-550-4-G3SB	PL-550-4-F6SB
PL-550-3-R3SB	PL-550-3-G3SB	PL-550-3-F6SB	PL-550-4-R3SB	PL-550-4-G3SB	PL-550-4-F6SB
PL-550-3-R3SB	PL-550-3-G3SB	PL-550-3-F6SB	PL-550-4-R3SB	PL-550-4-G3SB	PL-550-4-F6SB
PL-550-3-R3SB	PL-550-3-G3SB	PL-550-3-F6SB	PL-550-4-R3SB	PL-550-4-G3SB	PL-550-4-F6SB
PL-550-3-R3SB	PL-550-3-G3SB	PL-550-3-F6SB	PL-550-4-R3SB	PL-550-4-G3SB	PL-550-4-F6SB
PL-550-3-R3SB	PL-550-3-G3SB	PL-550-3-F6SB	PL-550-4-R3SB	PL-550-4-G3SB	PL-550-4-F6SB
PL-550-3-R3SB	PL-550-3-G3SB	PL-550-3-F6SB	PL-550-4-R3SB	PL-550-4-G3SB	PL-550-4-F6SB
PL-550-3-R3S	PL-550-3-G3S	PL-550-3-F6S	PL-550-4-R3S	PL-550-4-G3S	PL-550-4-F6S
PL-550-3-R3S	PL-550-3-G3S	PL-550-3-F6S	PL-550-4-R3S	PL-550-4-G3S	PL-550-4-F6S
PL-550-3-R3S	PL-550-3-G3S	PL-550-3-F6S	PL-550-4-R3S	PL-550-4-G3S	PL-550-4-F6S
PL-550-3-R3S	PL-550-3-G3S	PL-550-3-F6S	PL-550-4-R3S	PL-550-4-G3S	PL-550-4-F6S
PL-550-3-R3S	PL-550-3-G3S	PL-550-3-F6S	PL-550-4-R3S	PL-550-4-G3S	PL-550-4-F6S
PL-550-3-R3S	PL-550-3-G3S	PL-550-3-F6S	PL-550-4-R3S	PL-550-4-G3S	PL-550-4-F6S
PL-550-3-R3S	PL-550-3-G3S	PL-550-3-F6S	PL-550-4-R3S	PL-550-4-G3S	PL-550-4-F6S
PL-550-3-R3S	PL-550-3-G3S	PL-550-3-F6S	PL-550-4-R3S	PL-550-4-G3S	PL-550-4-F6S
PL-550-3-R3B	PL-550-3-G3B	PL-550-3-F6B	PL-550-4-R3B	PL-550-4-G3B	PL-550-4-F6B
PL-550-3-R3B	PL-550-3-G3B	PL-550-3-F6B	PL-550-4-R3B	PL-550-4-G3B	PL-550-4-F6B
PL-550-3-R3B	PL-550-3-G3B	PL-550-3-F6B	PL-550-4-R3B	PL-550-4-G3B	PL-550-4-F6B
PL-550-3-R3B	PL-550-3-G3B	PL-550-3-F6B	PL-550-4-R3B	PL-550-4-G3B	PL-550-4-F6B
PL-550-3-R3B	PL-550-3-G3B	PL-550-3-F6B	PL-550-4-R3B	PL-550-4-G3B	PL-550-4-F6B
PL-550-3-R3B	PL-550-3-G3B	PL-550-3-F6B	PL-550-4-R3B	PL-550-4-G3B	PL-550-4-F6B
PL-550-3-R3B	PL-550-3-G3B	PL-550-3-F6B	PL-550-4-R3B	PL-550-4-G3B	PL-550-4-F6B
PL-550-3-R3B	PL-550-3-G3B	PL-550-3-F6B	PL-550-4-R3B	PL-550-4-G3B	PL-550-4-F6B
PL-550-3-R3	PL-550-3-G3	PL-550-3-F6	PL-550-4-R3	PL-550-4-G3	PL-550-4-F6
PL-550-3-R3	PL-550-3-G3	PL-550-3-F6	PL-550-4-R3	PL-550-4-G3	PL-550-4-F6
PL-550-3-R3	PL-550-3-G3	PL-550-3-F6	PL-550-4-R3	PL-550-4-G3	PL-550-4-F6
PL-550-3-R3	PL-550-3-G3	PL-550-3-F6	PL-550-4-R3	PL-550-4-G3	PL-550-4-F6
PL-550-3-R3	PL-550-3-G3	PL-550-3-F6	PL-550-4-R3	PL-550-4-G3	PL-550-4-F6
PL-550-3-R3	PL-550-3-G3	PL-550-3-F6	PL-550-4-R3	PL-550-4-G3	PL-550-4-F6
PL-550-3-R3	PL-550-3-G3	PL-550-3-F6	PL-550-4-R3	PL-550-4-G3	PL-550-4-F6
PL-550-3-R3	PL-550-3-G3	PL-550-3-F6	PL-550-4-R3	PL-550-4-G3	PL-550-4-F6
PL-550-5-R3SB	PL-550-5-G3SB	PL-550-5-F6SB	PL-550-6-R3SB	PL-550-6-G3SB	PL-550-6-F6SB
PL-550-5-R3SB	PL-550-5-G3SB	PL-550-5-F6SB	PL-550-6-R3SB	PL-550-6-G3SB	PL-550-6-F6SB
PL-550-5-R3SB	PL-550-5-G3SB	PL-550-5-F6SB	PL-550-6-R3SB	PL-550-6-G3SB	PL-550-6-F6SB
PL-550-5-R3SB	PL-550-5-G3SB	PL-550-5-F6SB	PL-550-6-R3SB	PL-550-6-G3SB	PL-550-6-F6SB
PL-550-5-R3SB	PL-550-5-G3SB	PL-550-5-F6SB	PL-550-6-R3SB	PL-550-6-G3SB	PL-550-6-F6SB
PL-550-5-R3SB	PL-550-5-G3SB	PL-550-5-F6SB	PL-550-6-R3SB	PL-550-6-G3SB	PL-550-6-F6SB
PL-550-5-R3SB	PL-550-5-G3SB	PL-550-5-F6SB	PL-550-6-R3SB	PL-550-6-G3SB	PL-550-6-F6SB
PL-550-5-R3S	PL-550-5-G3S	PL-550-5-F6S	PL-550-6-R3S	PL-550-6-G3S	PL-550-6-F6S
PL-550-5-R3S	PL-550-5-G3S	PL-550-5-F6S	PL-550-6-R3S	PL-550-6-G3S	PL-550-6-F6S
PL-550-5-R3S	PL-550-5-G3S	PL-550-5-F6S	PL-550-6-R3S	PL-550-6-G3S	PL-550-6-F6S
PL-550-5-R3S	PL-550-5-G3S	PL-550-5-F6S	PL-550-6-R3S	PL-550-6-G3S	PL-550-6-F6S
PL-550-5-R3S	PL-550-5-G3S	PL-550-5-F6S	PL-550-6-R3S	PL-550-6-G3S	PL-550-6-F6S
PL-550-5-R3S	PL-550-5-G3S	PL-550-5-F6S	PL-550-6-R3S	PL-550-6-G3S	PL-550-6-F6S
PL-550-5-R3S	PL-550-5-G3S	PL-550-5-F6S	PL-550-6-R3S	PL-550-6-G3S	PL-550-6-F6S
PL-550-5-R3S	PL-550-5-G3S	PL-550-5-F6S	PL-550-6-R3S	PL-550-6-G3S	PL-550-6-F6S
PL-550-5-R3B	PL-550-5-G3B	PL-550-5-F6B	PL-550-6-R3B	PL-550-6-G3B	PL-550-6-F6B
PL-550-5-R3B	PL-550-5-G3B	PL-550-5-F6B	PL-550-6-R3B	PL-550-6-G3B	PL-550-6-F6B
PL-550-5-R3B	PL-550-5-G3B	PL-550-5-F6B	PL-550-6-R3B	PL-550-6-G3B	PL-550-6-F6B
PL-550-5-R3B	PL-550-5-G3B	PL-550-5-F6B	PL-550-6-R3B	PL-550-6-G3B	PL-550-6-F6B
PL-550-5-R3B	PL-550-5-G3B	PL-550-5-F6B	PL-550-6-R3B	PL-550-6-G3B	PL-550-6-F6B
PL-550-5-R3B	PL-550-5-G3B	PL-550-5-F6B	PL-550-6-R3B	PL-550-6-G3B	PL-550-6-F6B
PL-550-5-R3B	PL-550-5-G3B	PL-550-5-F6B	PL-550-6-R3B	PL-550-6-G3B	PL-550-6-F6B
PL-550-5-R3B	PL-550-5-G3B	PL-550-5-F6B	PL-550-6-R3B	PL-550-6-G3B	PL-550-6-F6B
PL-550-5-R3	PL-550-5-G3	PL-550-5-F6	PL-550-6-R3	PL-550-6-G3	PL-550-6-F6
PL-550-5-R3	PL-550-5-G3	PL-550-5-F6	PL-550-6-R3	PL-550-6-G3	PL-550-6-F6
PL-550-5-R3	PL-550-5-G3	PL-550-5-F6	PL-550-6-R3	PL-550-6-G3	PL-550-6-F6
PL-550-5-R3	PL-550-5-G3	PL-550-5-F6	PL-550-6-R3	PL-550-6-G3	PL-550-6-F6
PL-550-5-R3	PL-550-5-G3	PL-550-5-F6	PL-550-6-R3	PL-550-6-G3	PL-550-6-F6
PL-550-5-R3	PL-550-5-G3	PL-550-5-F6	PL-550-6-R3	PL-550-6-G3	PL-550-6-F6
PL-550-5-R3	PL-550-5-G3	PL-550-5-F6	PL-550-6-R3	PL-550-6-G3	PL-550-6-F6
PL-550-5-R3	PL-550-5-G3	PL-550-5-F6	PL-550-6-R3	PL-550-6-G3	PL-550-6-F6
PL-550-7-R3SB	PL-550-7-G3SB	PL-550-7-F6SB
PL-550-7-R3SB	PL-550-7-G3SB	PL-550-7-F6SB
PL-550-7-R3SB	PL-550-7-G3SB	PL-550-7-F6SB
PL-550-7-R3SB	PL-550-7-G3SB	PL-550-7-F6SB
PL-550-7-R3SB	PL-550-7-G3SB	PL-550-7-F6SB
PL-550-7-R3SB	PL-550-7-G3SB	PL-550-7-F6SB
PL-550-7-R3SB	PL-550-7-G3SB	PL-550-7-F6SB
PL-550-7-R3S	PL-550-7-G3S	PL-550-7-F6S
PL-550-7-R3S	PL-550-7-G3S	PL-550-7-F6S
PL-550-7-R3S	PL-550-7-G3S	PL-550-7-F6S
PL-550-7-R3S	PL-550-7-G3S	PL-550-7-F6S
PL-550-7-R3S	PL-550-7-G3S	PL-550-7-F6S
PL-550-7-R3S	PL-550-7-G3S	PL-550-7-F6S
PL-550-7-R3S	PL-550-7-G3S	PL-550-7-F6S
PL-550-7-R3S	PL-550-7-G3S	PL-550-7-F6S
PL-550-7-R3B	PL-550-7-G3B	PL-550-7-F6B
PL-550-7-R3B	PL-550-7-G3B	PL-550-7-F6B
PL-550-7-R3B	PL-550-7-G3B	PL-550-7-F6B
PL-550-7-R3B	PL-550-7-G3B	PL-550-7-F6B
PL-550-7-R3B	PL-550-7-G3B	PL-550-7-F6B
PL-550-7-R3B	PL-550-7-G3B	PL-550-7-F6B
PL-550-7-R3B	PL-550-7-G3B	PL-550-7-F6B
PL-550-7-R3B	PL-550-7-G3B	PL-550-7-F6B
PL-550-7-R3	PL-550-7-G3	PL-550-7-F6
PL-550-7-R3	PL-550-7-G3	PL-550-7-F6
PL-550-7-R3	PL-550-7-G3	PL-550-7-F6
PL-550-7-R3	PL-550-7-G3	PL-550-7-F6
PL-550-7-R3	PL-550-7-G3	PL-550-7-F6
PL-550-7-R3	PL-550-7-G3	PL-550-7-F6
PL-550-7-R3	PL-550-7-G3	PL-550-7-F6
PL-550-7-R3	PL-550-7-G3	PL-550-7-F6

提示：了解更多系列型号，可咨询客服、参考产品目录或企业官网。

▊ 规格

☑ 规格参数

製品名	屋内汎用型 圧力スイッチ
サイズ	Ｗ.126.5×Ｄ.74×Ｈ.171.5 mm
保護構造	IP52(IEC529)相当
耐久性	電気的機械的寿命 30万回以上
重　量	約 1.3 kg
受圧部	ベローズ式
材質	リン青銅

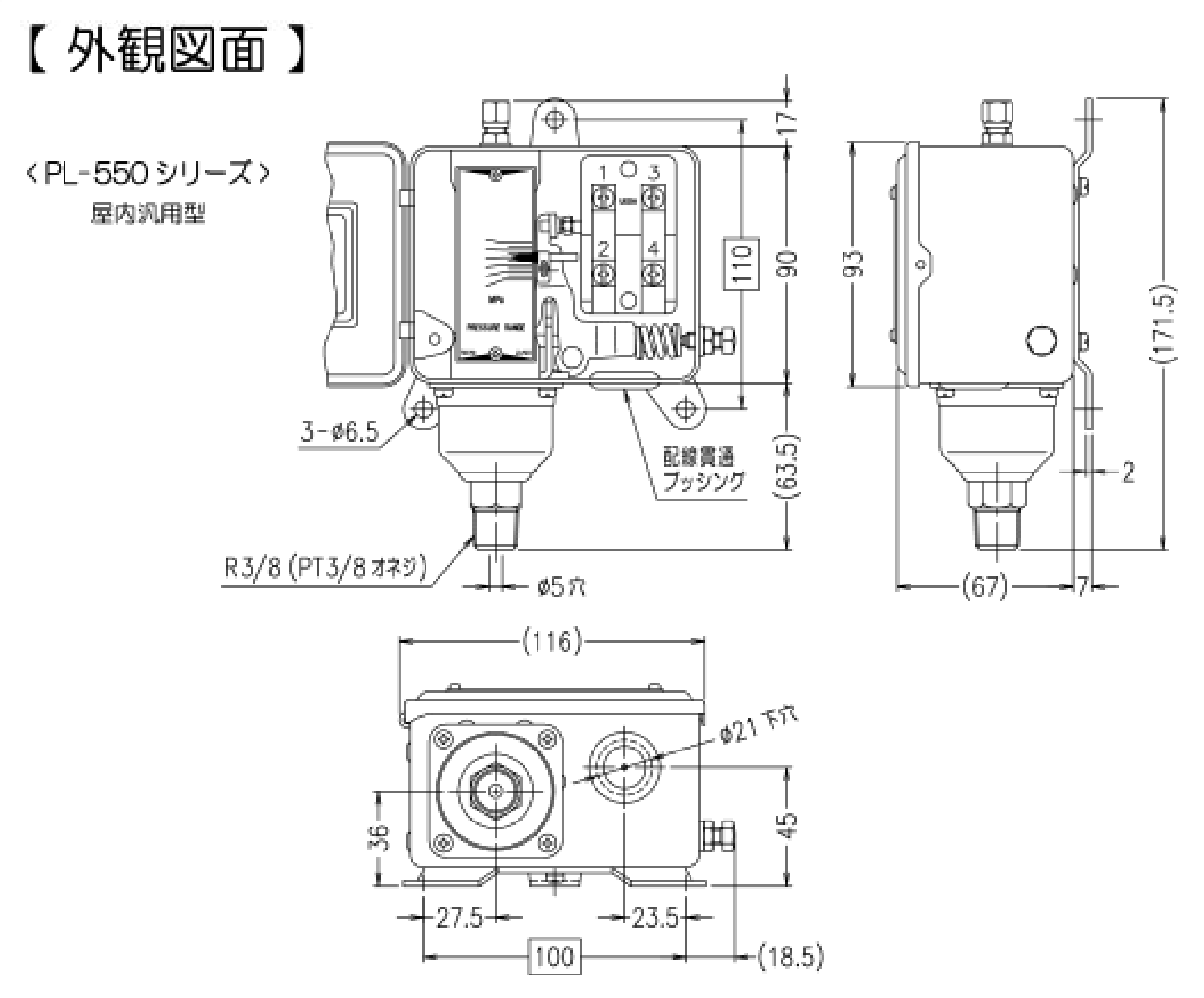

☑ 外形规格

说明：以上规格参数源自于产品目录或企业官网。如有发生变更，恕不另行通知，具体可参考官网、产品目录或官方通告。

▊ 特点

• 略

▊ 应用

• 应用在仪表相关的水压、气压、液压等。

购买说明
• 了解更多上述系列型号产品的规格、特点、应用等详情，可咨询客服，或参考官方网站/产品目录。
• 以上展示的产品图片仅供说明用，具体型号可能有所差异。
• 上述系列型号产品的外观、包装、产地、附件说明等可能会因升级迭代等原因而有变更，请以实际报价或产品目录等为准。
• 关于上述系列型号的产品【价格、货期、付款、物流】等信息，请参考具体邮件或报价等。
权利声明
• 以上文章部分或全部图片、文字等信息转自于互联网、声明CC0协议第三方网站、官网或产品目录等。如有侵犯权利或不希望本网站使用，请联系我们，本网站将在第一时间移除。详情参见【著作权声明】。
• Disclaimer: The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
• この Web サイトに掲載されている製品の名前、商標、ブランド、およびロゴを特徴とする製品の描写、説明、または販売は、識別のみを目的としており、権利所有者との提携または承認を示すことを意図したものではありません。 このサイトで使用されているすべての製品名、商標、ブランド、およびロゴは、それぞれの所有者の財産です。

高思承诺
• 高思销售的商品提供正规增值税发票、商务文件、专业的售后服务。
正品行货
• 高思向您保证所售商品均为正品行货。
高效配送
• 高思销售的商品默认以顺丰或京东快递/物流发货，安全快速。（部分商品除外，详情参见具体报价或相关规定）

---
